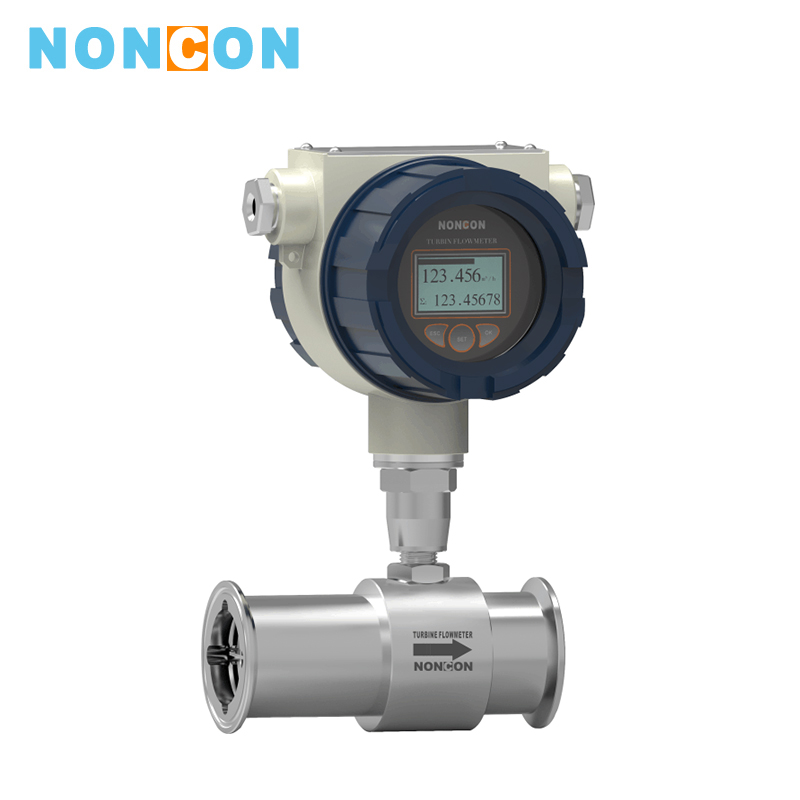

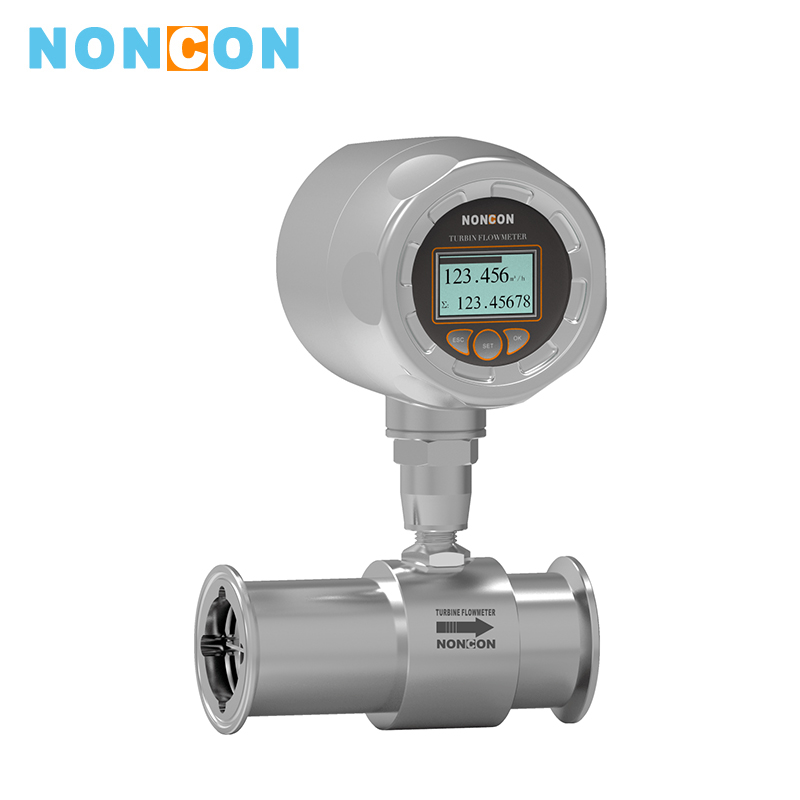

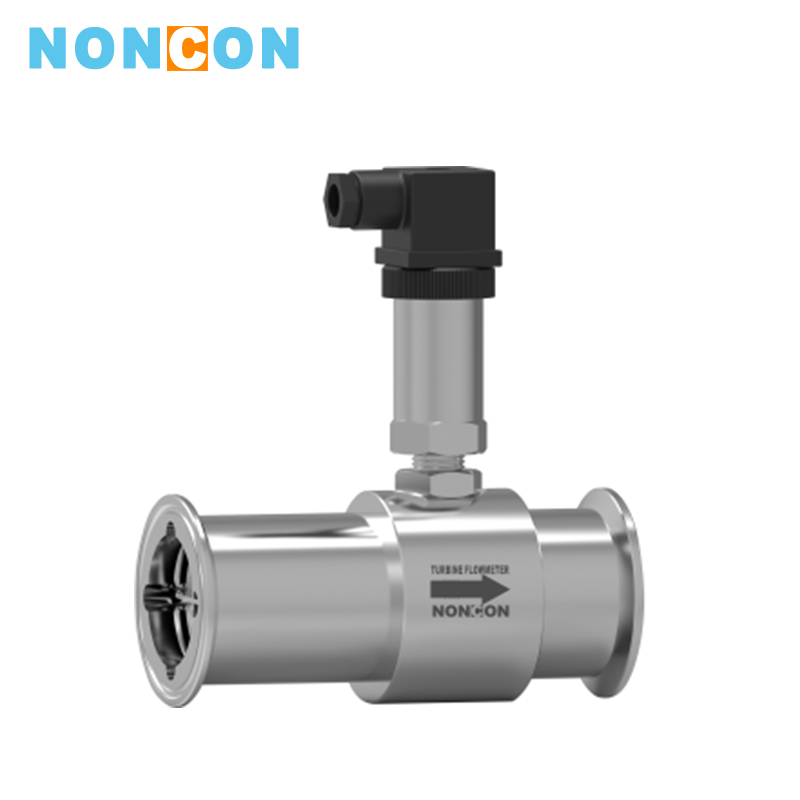

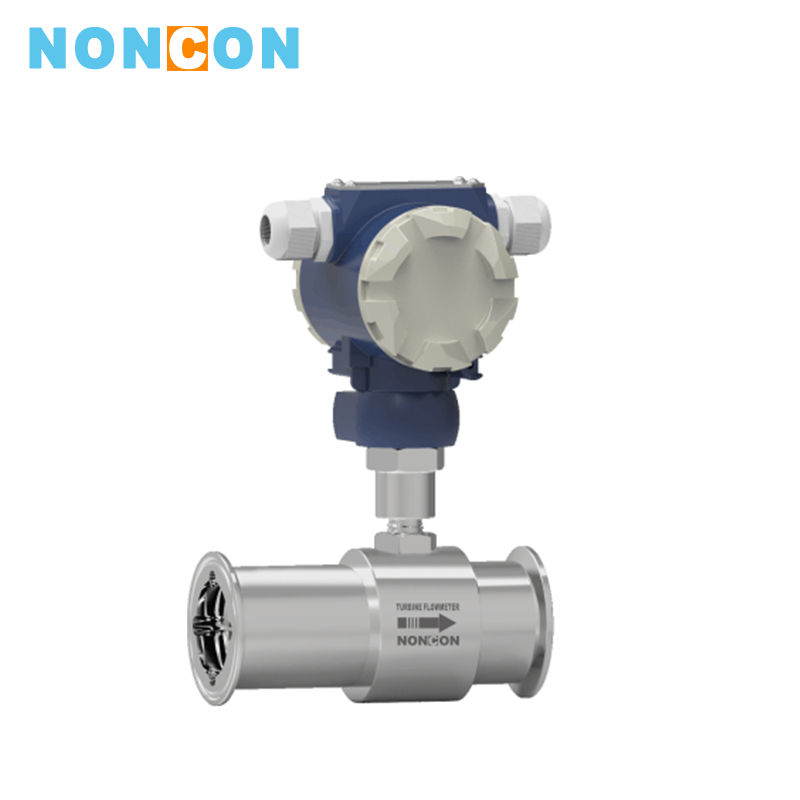

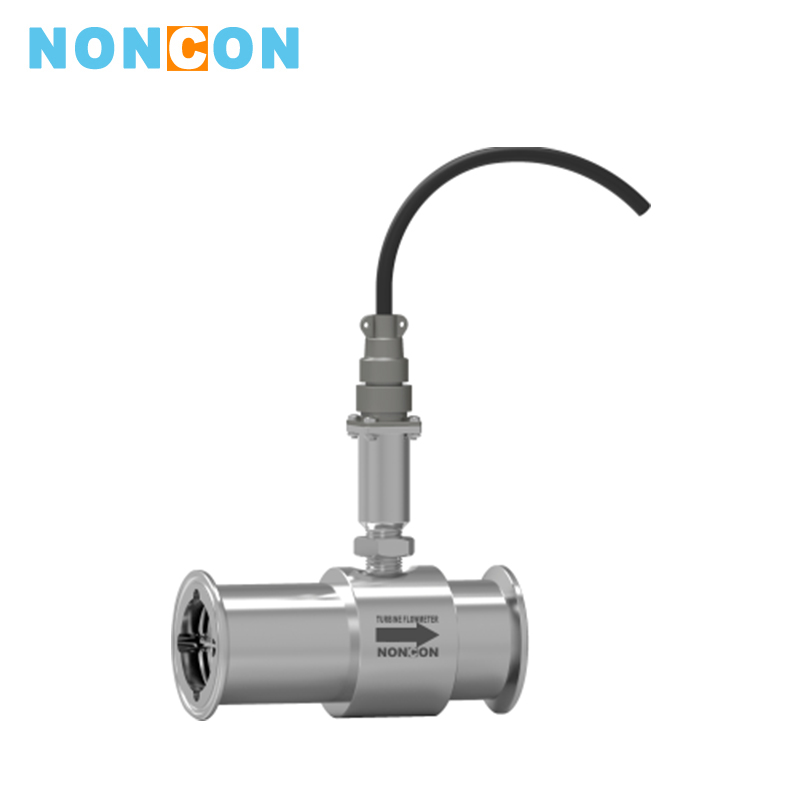

LWGS Sanitary Type Liquid Turbine Flowmeter
application：It is widely used in the pharmaceutical food beverage and other industries as a metering instrument for metering batching control finished product filling and other purposes.
medium：
The pharmaceutical food beverage and other industries are used for measurement batching control and finished product filling.
LWGS series sanitary type turbine flowmeter is a flowmeter meter that can be widely used in pharmaceutical food beverage and other industries for applications of metering batching control finished product filling.
The meter housing is made of stainless steel (316L) or 304 and the movement part is made of special material which has good anti-corrosion and anti-rust ability. The whole meter structure breaks through the traditional process and the advanced structure optimization design from foreign countries is used which greatly improves the accuracy and repeatability of the meter. It is specially designed for the pharmaceutical and beverage industries and adopts a quick-connect structure is used to facilitate cleaning. The LWGS series sanitary type turbine flowmeters have reached the international level of similar products and are ideal for the sanitary industry.
Detailed introduction
Ⅰ.Features■International standards is used and the product can replace similar imported products
■Anti-corrosion and anti-rust material are used, suitable for the sanitary industry
■Quick-connect structure is used, easy to install and maintain
■High precision and good repeatability
■High quality turbine, beyond the conventional range
Ⅱ.Technical Parameters

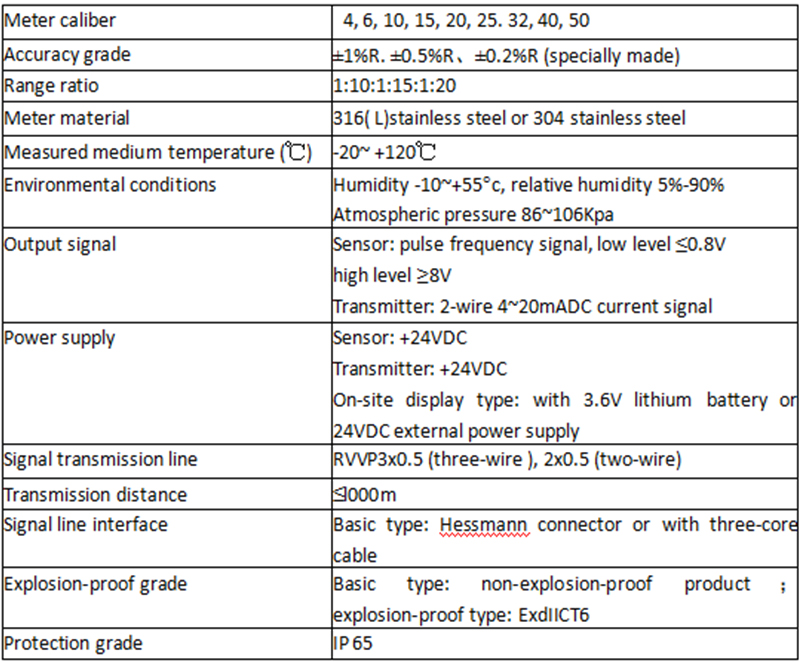

1.LWGS sanitary type liquid turbine flowmeter

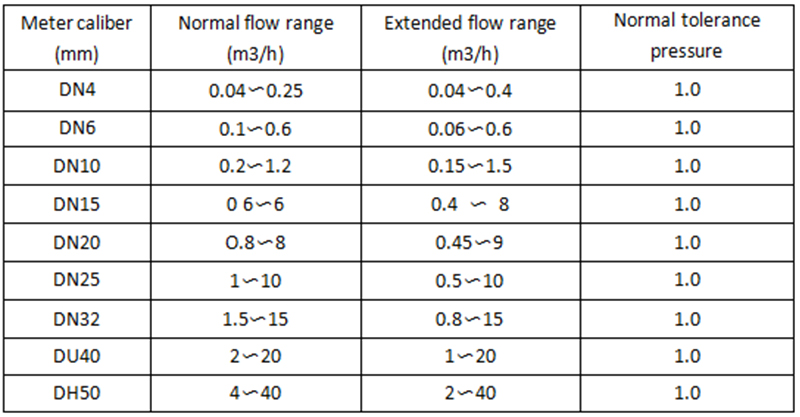

2.measurement range and working pressure

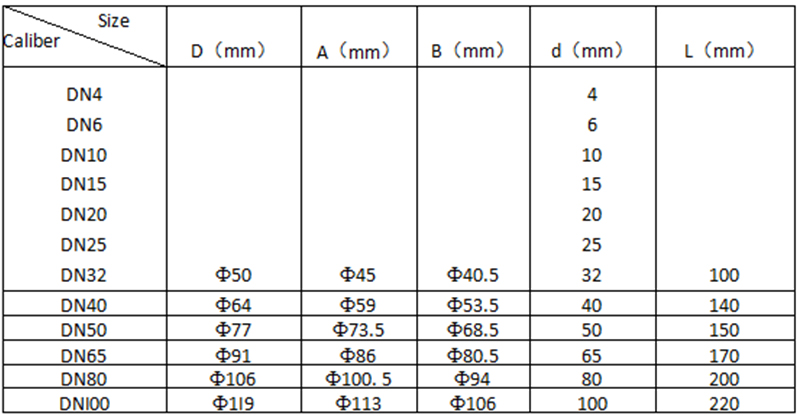

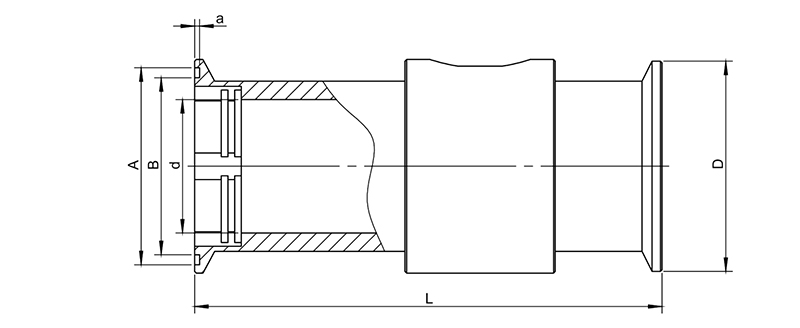

Ⅲ.Dimensional drawing

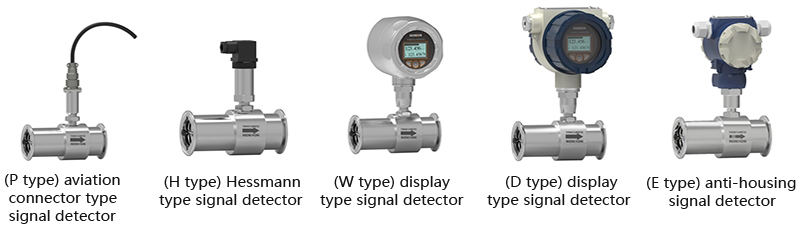

Ⅳ.Detector Type
Ⅴ.Meter Selection
| Model | Description | |
| LWGS- | ||
| Nominal diameter |
4 6 10 15 20 25 32 40 50 |
DN4mm DN6mm DNIOmm DN15mm DN20mm DN25mm DN32mm DN40mm DN50mm |
| Signal output type |
P H E D W |
Normal aviation connector with 4 m cable (for N-type output type) Hessmann connector (for N, A type output signal type) Explosion-proof housing type (for N, A type output type) Display type housing (for B and C type output types) All stainless steel sanitary display type housing (for B and C type output types) |
| Output type |
N A B Cl C2 C3 |
Sensor type: 24VDC power supply, output three-wire pulse signal Transmitter type: 24VDC power supply, output two-wire 4 ~ 20mA Intelligent type : Lithium battery power supply, on-site display (dual power supply, pulse output can be optional) Intelligent type: 24VDC power supply, on-site display, output 4 ~ 20mA (pulse output can be optional) Intelligent type: 24VDC power supply, on-site display, output two-wire 4 ~ 20mA ,HART communication (pulse output can be optional) Intelligent type: 24VDC power supply, on-site display, RS485 communication (dual power supply,pulse output can be optional) |
| Accuracy grade | 05 | Accuracy grade 0.5 |
| 10 | Accuracy grade 1.0 | |
| Material type | W | 304 stainless steel |
| S | 316L stainless steel (customized, long production time) | |
| Explosion proof | N | Unmarked, non-explosion-proof |
| E | Explosion-proof type (ExdIICT6) | |
