MF5200 Series Gas Mass Flowmeter
application：
medium：
MF5200 series oxygen mass flowmeter is a kind of flow meter specially designed for the oxygen supply system of the hospital center.The flowmeter has detachable display, RS485 network communication interface and user self-setting alarm function, which can better realize network transmission and traffic monitoring.MF5212 and MF5219 can measure gas flow at 0~300L/min (standard condition) and 0~800L/min(standard condition) respectively.
Detailed introduction

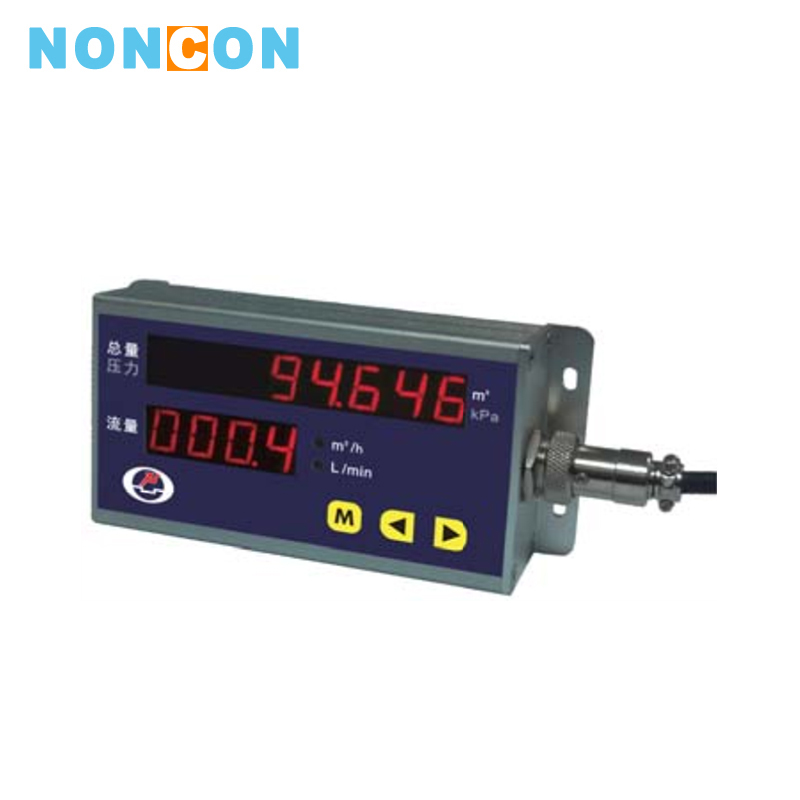

Ⅰ.Product features■The split display can be installed away from the gas line through a specially designed connection cable.
■LED digital display, which can display instantaneous flow, total amount and pressure (optional).
■RS485 communication module is provided to facilitate centralized control and remote transmission.
■Bright and clean stainless steel tube for oxygen measurement.
■Default spherical seal,and a variety of other connection options are available according to user requirements.

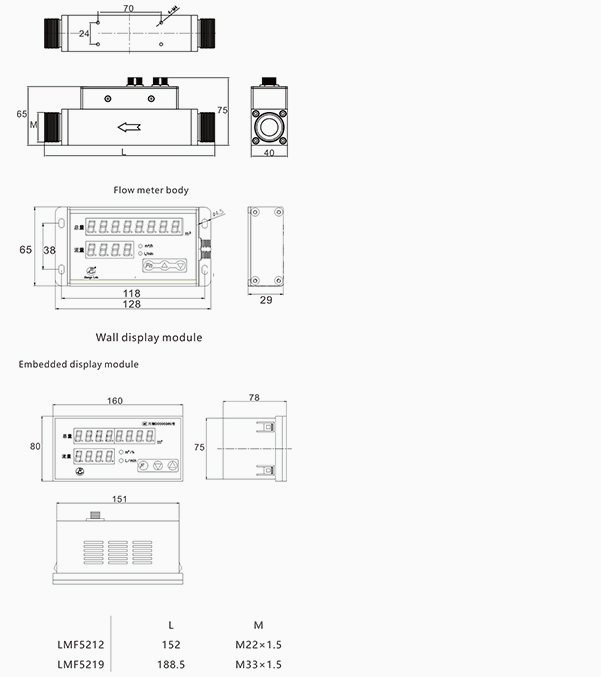

Ⅱ.Dimension drawing

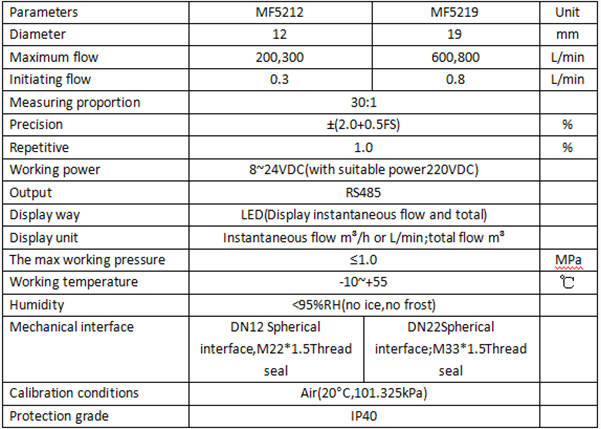

Ⅲ.Technical parameters
