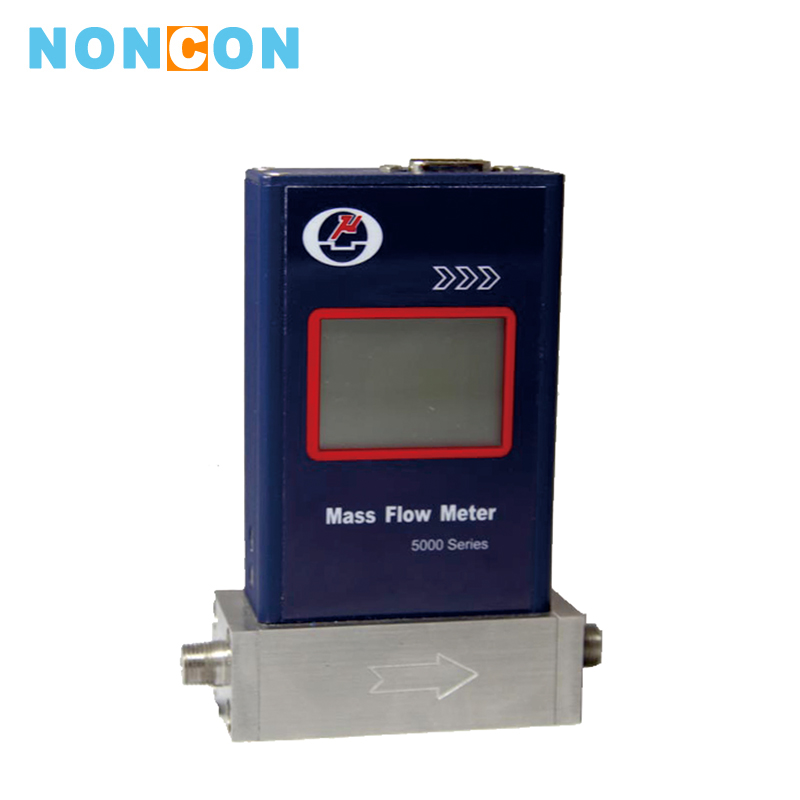

MF5000 Series Gas Mass Flowmeter
application：
medium：
MF5000 series gas mass flowmeter is Guangzhou South Control Automation equipment Co., Ltd. combining microelectromechanical system (MEMS) flow sensor chip technology and computer adaptive technology experience for many years, to develop the intelligent all electronic gas mass flow meter, the main technical performance is at the international leading level, with high sensitivity, high precision and large range of measurement characteristics: in view of the industrial environment, electromagnetic compatibility design incorporates a variety of anti-jamming measures: with a variety of signal output, can through the communication interface to realize network management functions:This product also has its unique superiority in performance, installation and maintenance, which can be widely used in petroleum, gas, chemical, smelting, energy and other fields.
Detailed introduction
Ⅰ.Product features■Using the microelectromechanical system chip processing technology and the large-scale integrated circuit production technology and material growth technology, the size of the sensor reduced to the micron level, so that the sensitivity of the flow meter greatly improved;
■Multi-sensor integration is realized on a single chip, which greatly improves the range ratio of the flow meter, and the zero point stability of the sensor is greatly improved compared with the traditional thermal mass flow meter;
■Combined with the microcomputer intelligent technology of the secondary instrument, the flow meter repeatability is good, the measurement is accurate and reliable, the structure is simplified by the technical progress, the flow meter compared with the traditional mechanical instrument, the pressure loss is greatly reduced, greatly reduce the energy consumption;
■LCD display of "instantaneous flow" and "cumulative flow" clear and intuitive, convenient reading;
■The product integrates electromagnetic compatibility design technology and has higher anti-interference ability;
■The flowmeter is equipped with RS485 communication module, which can realize centralized management with the upper computer network;
■Optional 4-20mA standard current signal output and pulse output.

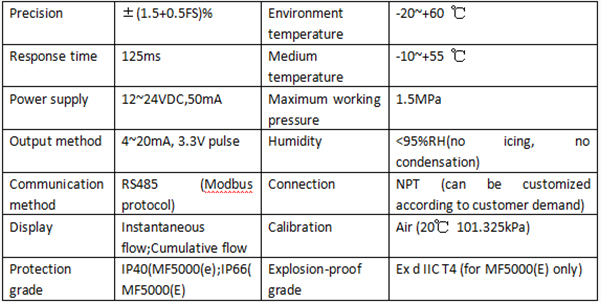

Ⅱ.Technical parameters:

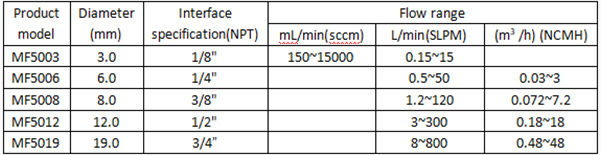

Ⅲ.Flow range:

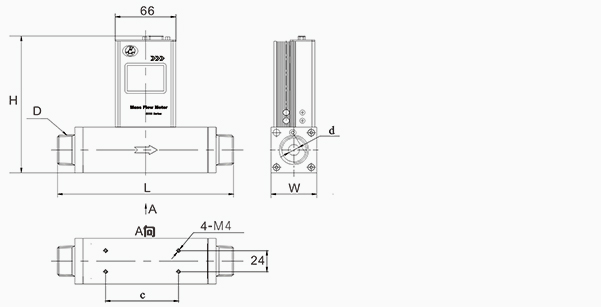

Ⅳ.Overall dimensions
