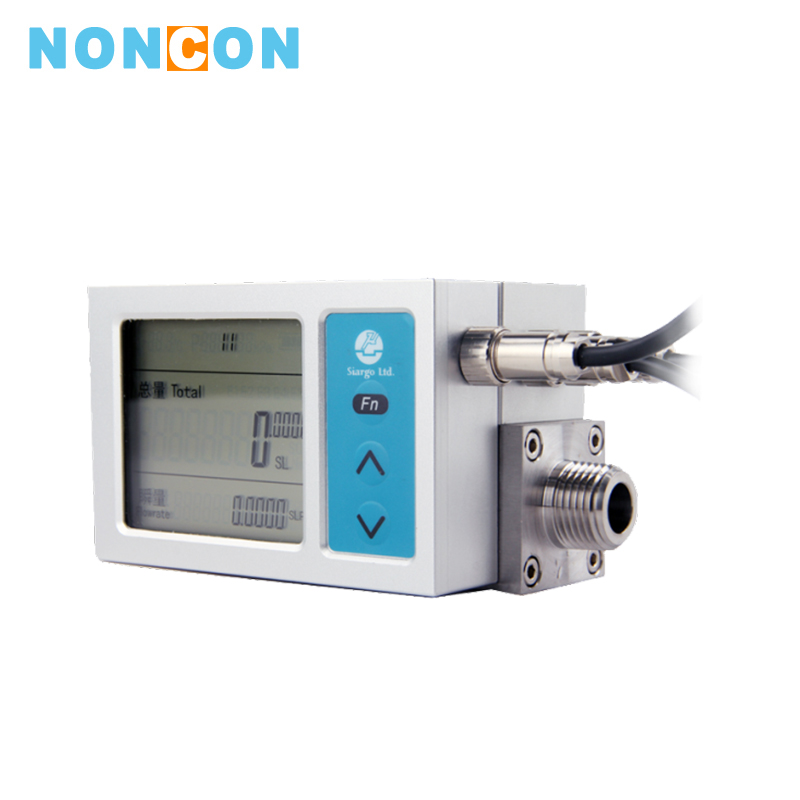

MF5600 Series Gas Mass Flowmeter
application：
medium：
MF5600 series separated gas mass flowmeters are specially designed for applications requiring separation of display and body, such as hospital oxygen supply system and small air separation system.The standard industrial user interface (rs485/4-20ma) of the flowmeter and the user-defined alarm function can better realize remote or network monitoring.Existing products MF5612 and MF5619 can measure gas flow at 0~300SLPM and 0~800SLPM respectively.
Detailed introduction
Ⅰ.Product features■The split display can be installed away from the gas line through a specially designed connection cable.
■The meter standard is equipped with RS485 communication module, which is equipped with 4-20mA standard current output and pulse output.
■Smooth stainless steel tube for oxygen measurement.
■Super-large range is helpful for accurate monitoring of gas flow.
■Multiple connection modes are optional, convenient to install.

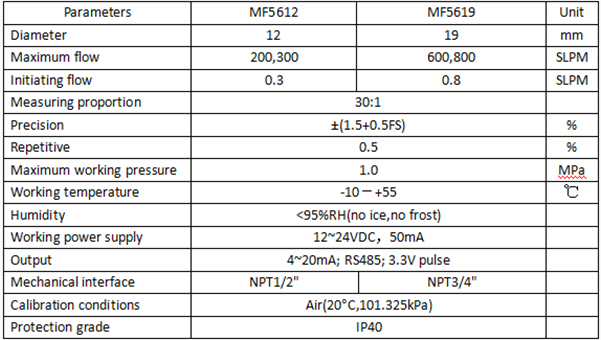

Ⅱ.Technical parameters

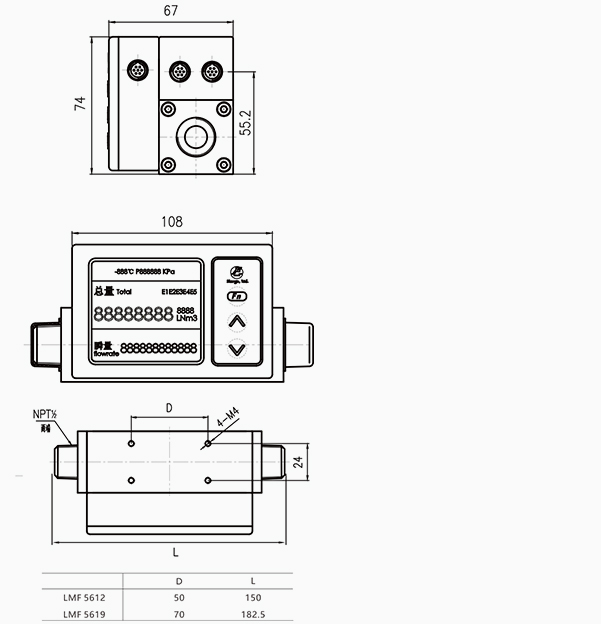

Ⅲ.Dimension drawing
