LUGK Multi-Variable Type Vortex Flowmeter
application：
medium：
Mass vortex flowmeter simple to install. Connection mode: flange and clamping connection.
It has superior reliability and stability due to no movable part and the detecting portion has only a simple configuration of the vortex generator. Features: Low pressure loss no leakage point and high safety performance.
Robust sensor construction for high temperature (up to 3500℃) high pressure fluid.
It has superior reliability and stability due to no movable part and the detecting portion has only a simple configuration of the vortex generator. Features: Low pressure loss no leakage point and high safety performance.
Robust sensor construction for high temperature (up to 3500℃) high pressure fluid.
Detailed introduction
Ⅰ. Features■Install a temperature sensor in the vortex flowmeter, and take the flow sensor sleeve as a temperature sleeve to isolate the vortex flow and the temperature sensor from the process, thereby ensuring easy verification and replacement.
■Temperature compensation capability of saturated steam, the density is calculated from the process temperature, and the calculated density is used to provide a temperature compensated mass flow.
■Improve the performance in saturated steam, as electronic components compensate for changes in process temperature, thereby improving performance in saturated steam.
■Reduce the installation cost, the multivariable vortex flowmeter do not require an external temperature sensor.
■Equipped with a flow totalizer providing additional functionality, integrating a multivariable vortex flowmeter with a pressure transmitter for full pressure and temperature compensation of superheated steam and various gases.
Ⅱ.Product categories

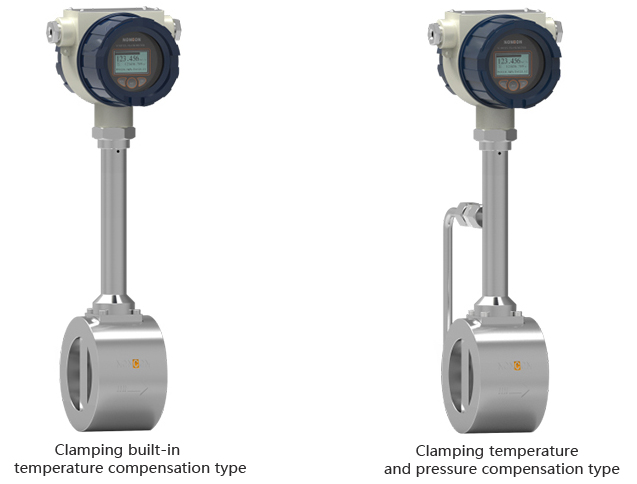

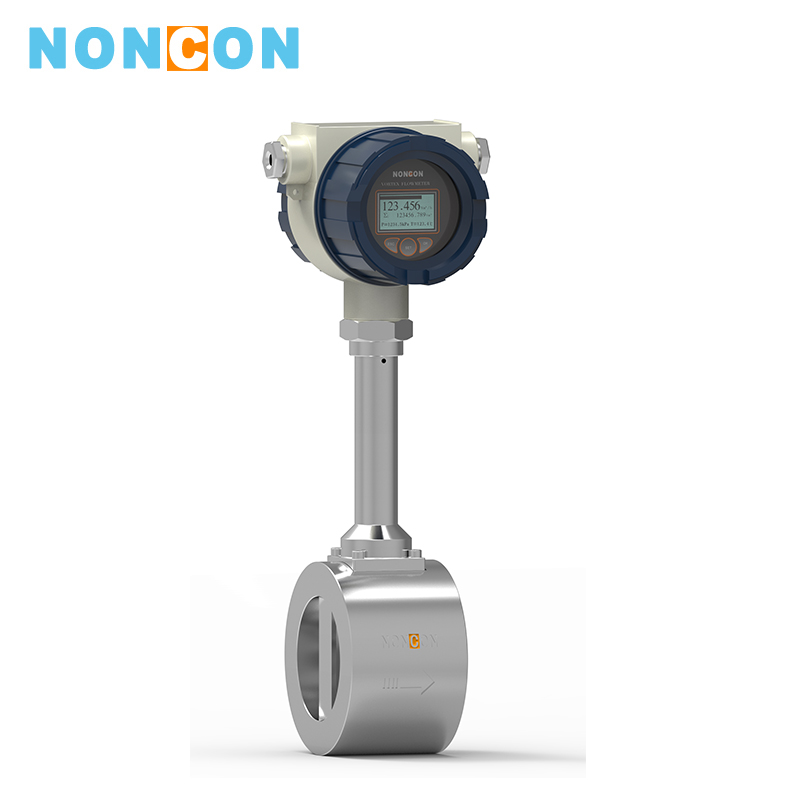

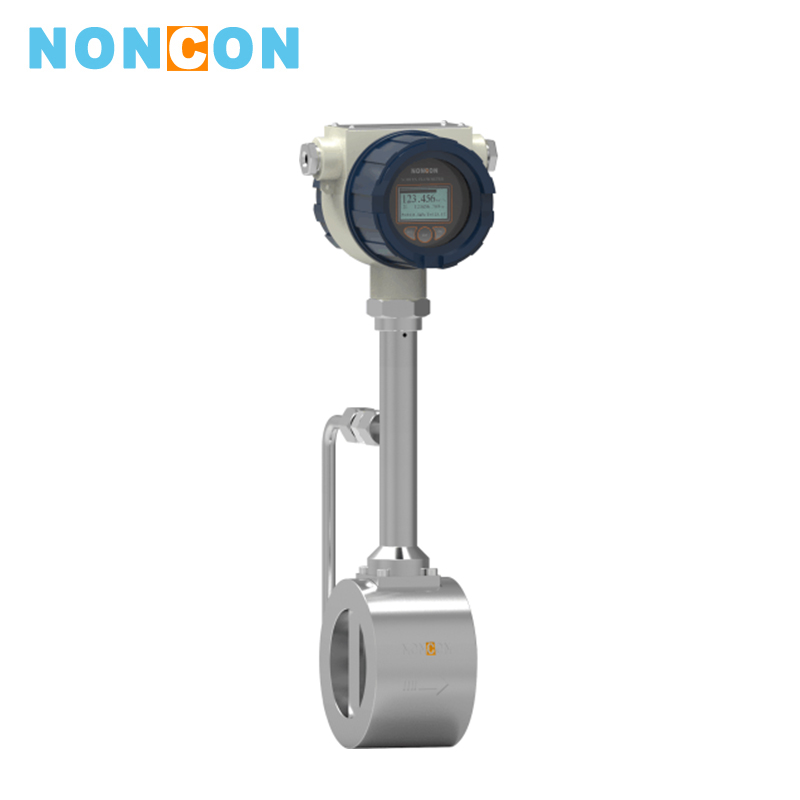

1、Clamped multivariate vortex flowmeter
No moving parts, long-term stability, simple structure for easy Installation and maintenance, temperature compensated mass flow accuracy: ±2.5% measured value (normal condition) Process temperature accuracy:1 ℃.

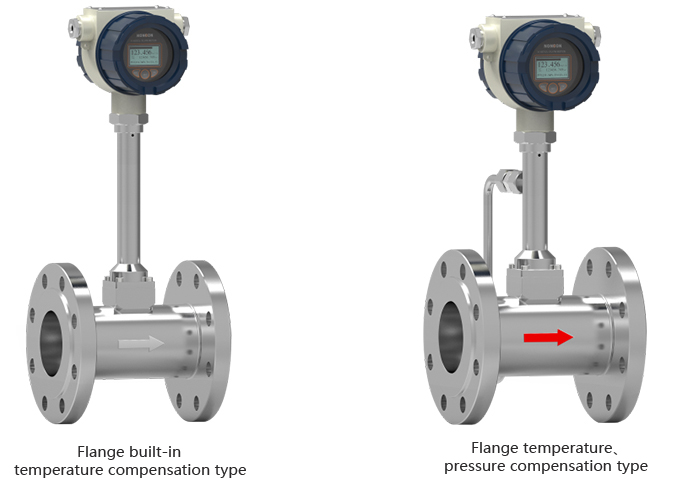

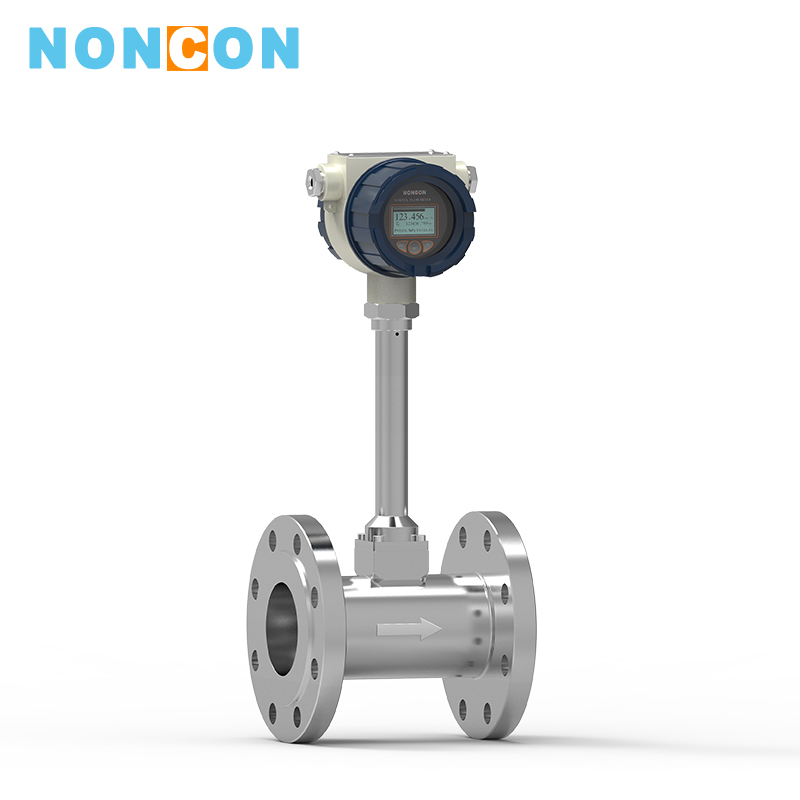

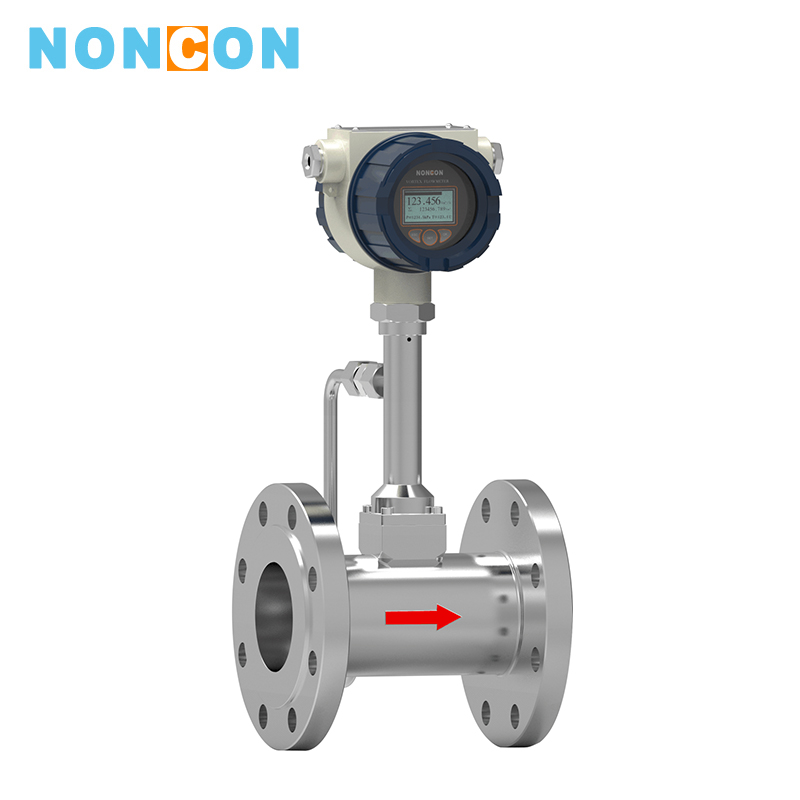

2、Flanged multivariate vortex flowmeter
Widely used in measurement of standard condition flow rate and mass flow of compressed air, saturated and superheated steam, natural gas and various medium in medium and small pipes.
Ⅲ. Product selection
| Model | Interpretation | ||||||
| LUGK | ¨ | ¨ | ¨ | ¨ | ¨ | ¨ | Full tube type vortex flowmeter |
| Connection mode | 1 | Flange connection（for full tube vortex flowmeter） | |||||
| 2 | Flange clamping（for full tube vortex flowmeter） | ||||||
| Measured medium | 1 | liquid | |||||
| 2 | general gas | ||||||
| 3 | compressed air | ||||||
| 4 | steam | ||||||
| inside nominal diameter | 00 | 15mm | |||||
| 01 | 20mm | ||||||
| 02 | 25mm | ||||||
| 03 | 32mm | ||||||
| 04 | 40mm | ||||||
| 05 | 50mm | ||||||
| 06 | 65mm | ||||||
| 08 | 80mm | ||||||
| 10 | 100mm | ||||||
| 12 | 125mm | ||||||
| 15 | 150mm | ||||||
| 20 | 200mm | ||||||
| 25 | 250mm | ||||||
| 30 | 300mm | ||||||
| Compensation | T | Temperature compensation（suitable for saturated steam） | |||||
| P | Pressure compensation（suitable for saturated steam） | ||||||
| F | Temperature and pressure compensation（suitable for superheated steam and compressed air） | ||||||
| Output type | B | Intelligent：Lithium battery power supply，status display（Dual power supply, pulse output optional） | |||||
| C1 | Intelligent：24VDC power supply，status display、output 4-20mA（pulse output optional） | ||||||
| C2 | Intelligent：24VDC power supply，status display、output two-wire system 4-20mA HART communication、（pulse output optional） | ||||||
| C3 | Intelligent：24VDC power supply，status display、RS485 communication、（Dual power supply, pulse output optional） | ||||||
| material quality | S | 304 stainless steel | |||||
| L | 316（L）stainless steel（Customized，long supply cycle） | ||||||
| Explosion-proof | N | Non-explosion-proof type | |||||
| E | Explosion-proof type，ExdIICT6 | ||||||
| Pressure grade | P | Conventional（Refer to Table 3）（customization for high pressure, long supply cycle） | |||||

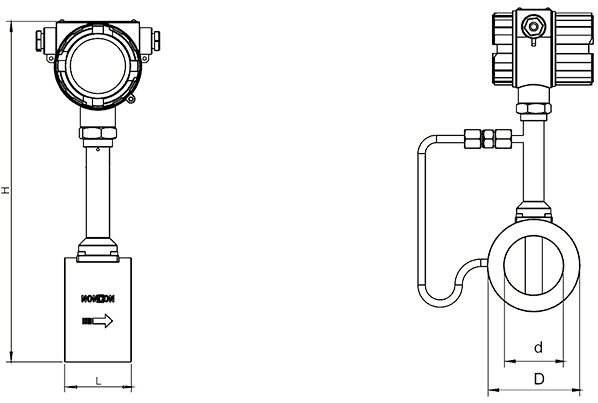

1、Installation dimensions of the clamped vortex flow meter(Fig.3)

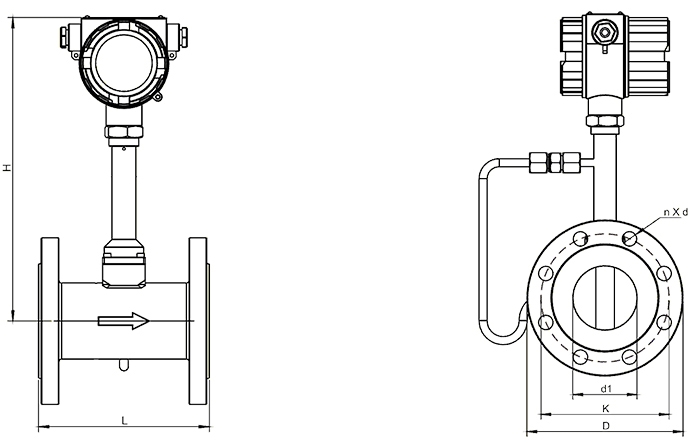

2、Installation dimensions of flange type vortex flowmeter（Fig.4）
