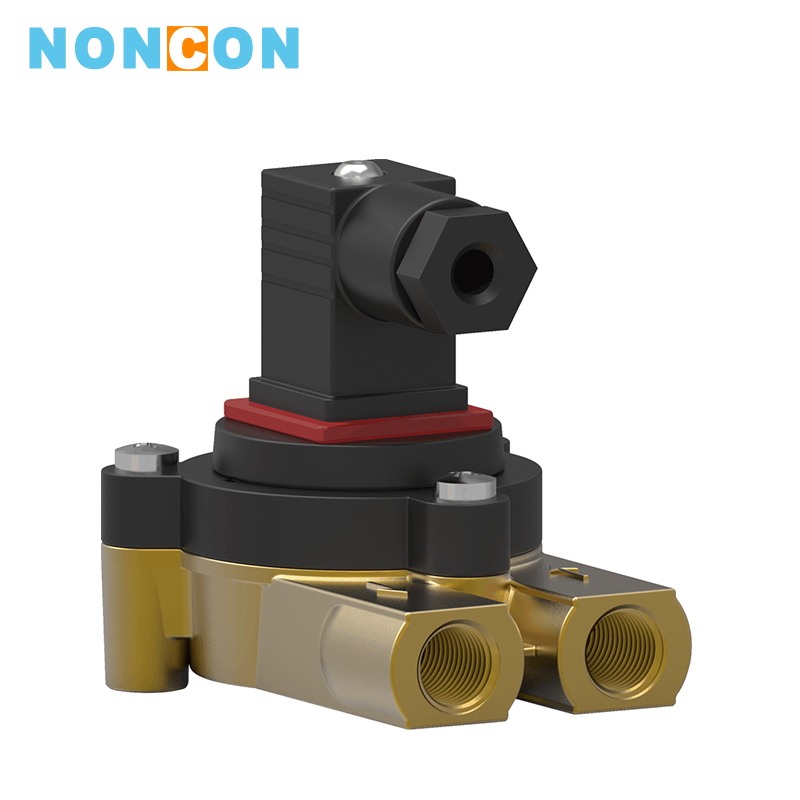

LWGM Micro Type Liquid Turbine Flowmeter
application：
medium：
■Small flow design, it can identify minimum recognition of 2.1L/h.
■It can be used to measure, regulate, and distribute liquids including industrial, chemical, petroleum, and commercial coffee machines.
■It can be used to measure, regulate, and distribute liquids including industrial, chemical, petroleum, and commercial coffee machines.
Detailed introduction
Ⅰ.OverviewThe LWGM series micro type liquid turbine flowmeter is a special flowmeter designed to measure small flows using the principle of turbines.It is extremely accurate, especially under high temperature and high pressure conditions. It is also integrated with a electronic pulse generator to maintain ±1% accuracy and ±0., 25% repeatability under long-term continuous operation. Due to the dexterous structural design, no precipitation is formed during operation, so the operation of the meter is “clean”.
Therefore, even for extremely demanding requirements, such as etchants used in the production processes of semiconductor integrated circuits and chips, it requires the system has extremely high corrosion resistance. For example, if a tiny particle falls, it will also make the chip a waste product, and this LWGM product can satisfy it.

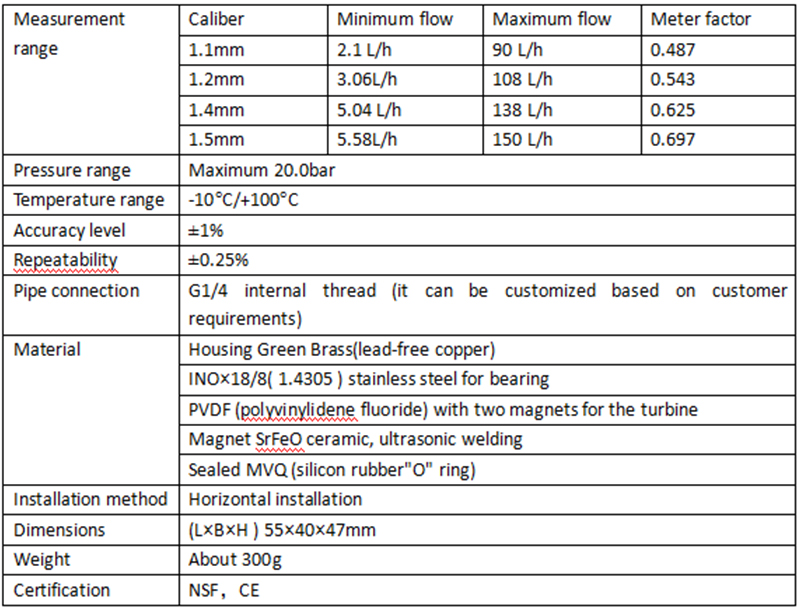

Ⅱ. Technical Parameters

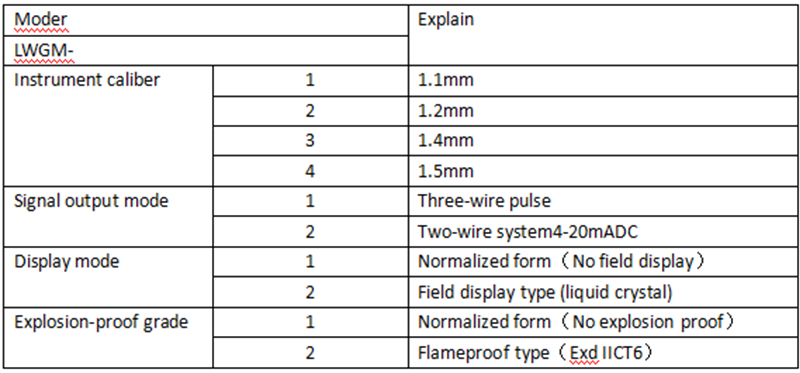

Ⅲ、Instrument selection
