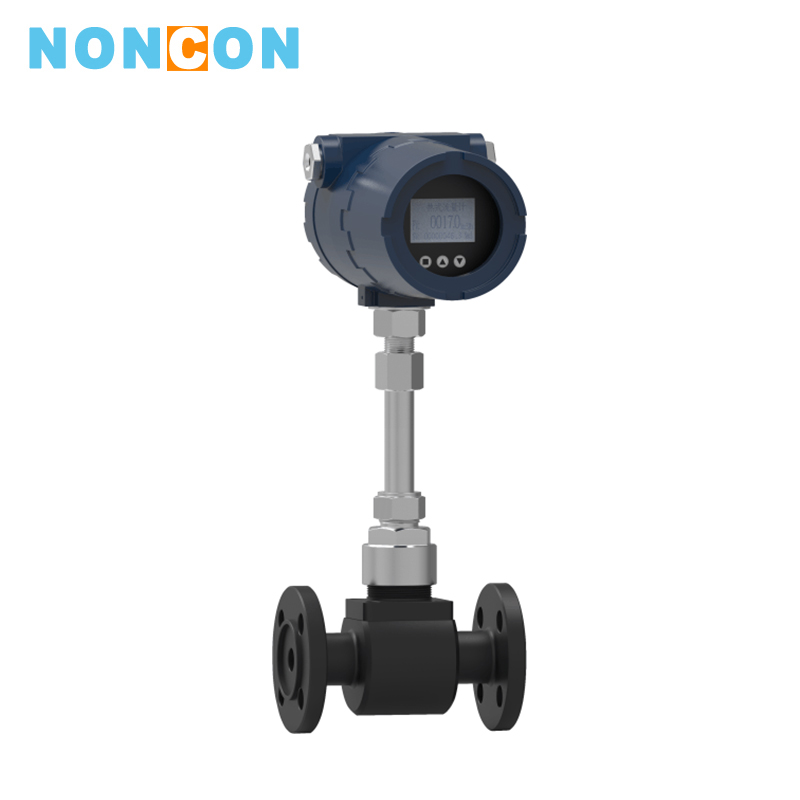

LKQ Thermal Type Gas Mass Flowmeter

application：Measurement of gas flow in petroleum, chemical, electric power, metallurgy, urban gas supply and other industries.

medium：

Measuring various gases, flowing gases.

LKQ series thermal gas mass flowmeter provide a reliable solution for gas mass flow detection. Low flow sensitivity, fast response and wide range ratio make this model of meter the first choice for many important gas applications. The Steel - Trak sensor automatically corrects the effects of temperature and pressure, making the mass flow output more stable and reliable. Its advantages in gas measurement are particularly pronounced, especially in the case of low pressures and complex gas compositions. Compared with other flowmeters, the thermal type gas mass flowmeter has the advantages of small pressure loss, wide range ratio and high sensitivity of small range segments, which is more conducive to energy saving and procurement costs.

Consultation

download

Detailed introduction

Ⅰ.Features
■Direct measurement of mass flow of gas without pressure and temperature compensation;
■High repeatability, high reliability, high stability and high precision;
■Range range width: up to 1000:1 or more;
■Explosion-proof, anti-corrosion design, suitable for harsh conditions, corrosive occasions；
■High sensitivity, especially suitable for flow measurement of large diameter and low flow rate;
■Eextremely small pressure loss and almost negligible;
■Diverse structure, flexible installation, convenient loading and unloading, easy to use, basically maintenance
■LCD display, clear and intuitive, showing both instantaneous flow and cumulative flow, so that you can see more clearly and more directly;
Ⅱ.Product Classification

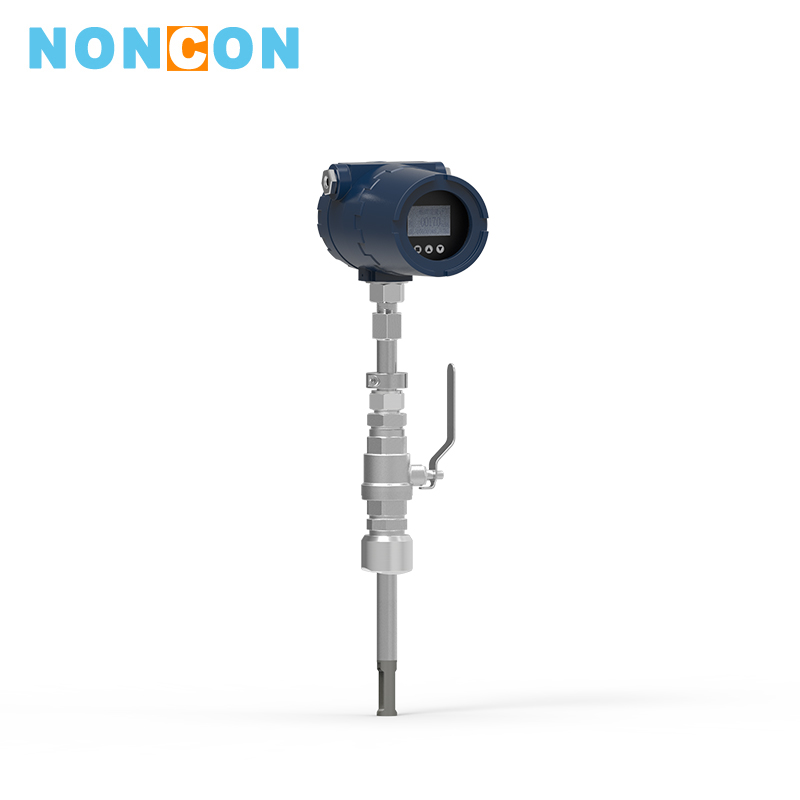

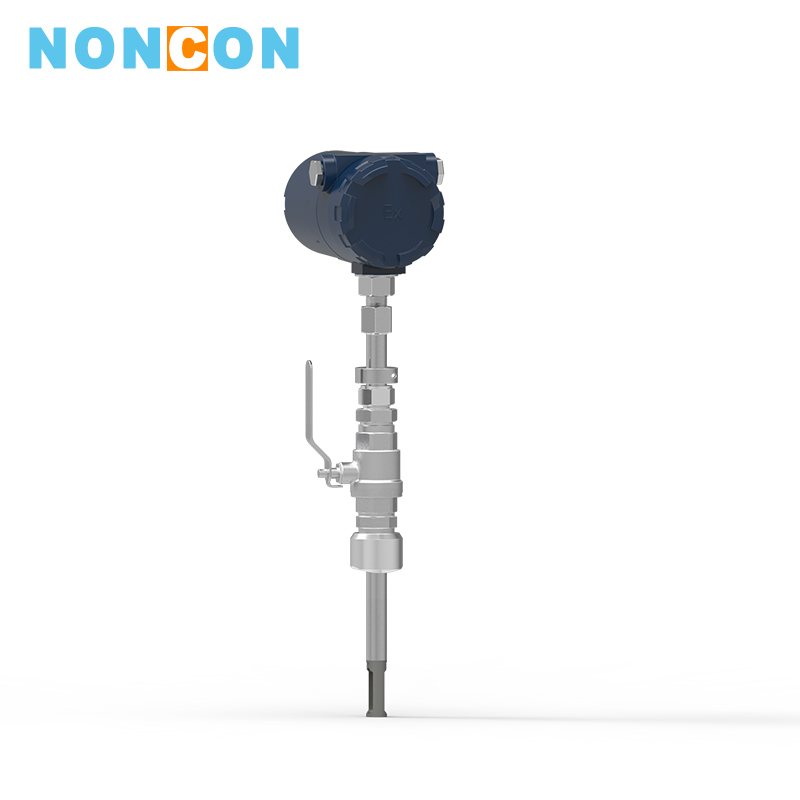

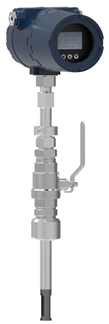

LKQ-A1 plug-in type
Applicable to gas mass flow measurement with pipe diameter greater than DN80. The meter has features such as high precision, good repeatability, high reliability, wide range ratio, fast response, simple and convenient installation, basic free of maintenance, almost no pressure loss, pipe diameter has a very small influence on the price. It has become more and more widely used in the field of gas measurement. Especially after the design with the ball valve installation, it breaks the history that the gas must be shut down when installing the flowmeter on site, which greatly facilitates the use.

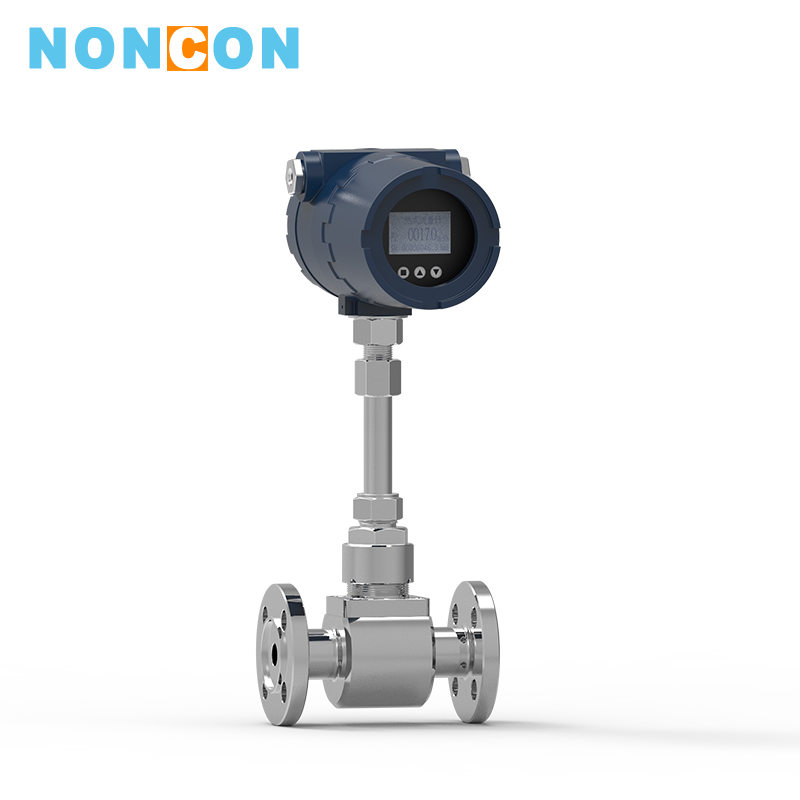

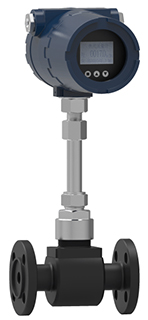

LKQ-A2 pipe mounting type
Applicable to gas mass flow measurement with pipe diameter less than DN65. It uses a more beautiful design, with double circlip, ten-layer V-type PTFE gasket, and flange with concave and convex surface, so that the meter will not leak under high pressure, which is more convenient for use, disassembly and maintenance.

LKQ-A2F3 anti-corrosion type

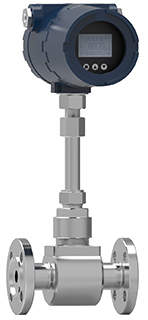

He anti-corrosion type thermal gas mass flowmeter has all the features of the conventional thermal mass flowmeter and the sheath of the sensor is made of special metal material tantalum with good acid corrosion resistance, and in the concentration of 28~29% hydrochloric acid ( at this concentration, hydrochloric acid is the most corrosive to metals.) the wall thickness will be corroded by 4u every year. If the wall thickness of the sheath is to be completely corroded, it takes more than ten years,moreover, the corrosive properties of chlorine, phosgene and other gases actually used are not as corrosive as the concentration of 28, 29% hydrochloric acid solution, and the PBF probe and the pipe to be tested are reliably sealed.

(1)Meter modeling

LKQ	-□	□	□	□	□	□	□	Code description
Installation form				A1				Plug-in type
Installation form				A2				Pipe mounting type
Power supply				B1				220VAC
Power supply				B2				24VDC
Output signal				C1				4~20mA
				C2				RS485
				C3				HART
Whether the meter has a display				D1				No display at the meter head
				D2				Header instantaneous flow display
				D3				Header instantaneous and cumulative flow display
Whether it has intelligent flow totalizer				E1				No flow totalizer
Whether it has intelligent flow totalizer				E2				With intelligent flow totalizer
Special requirements				F1				No special requirements

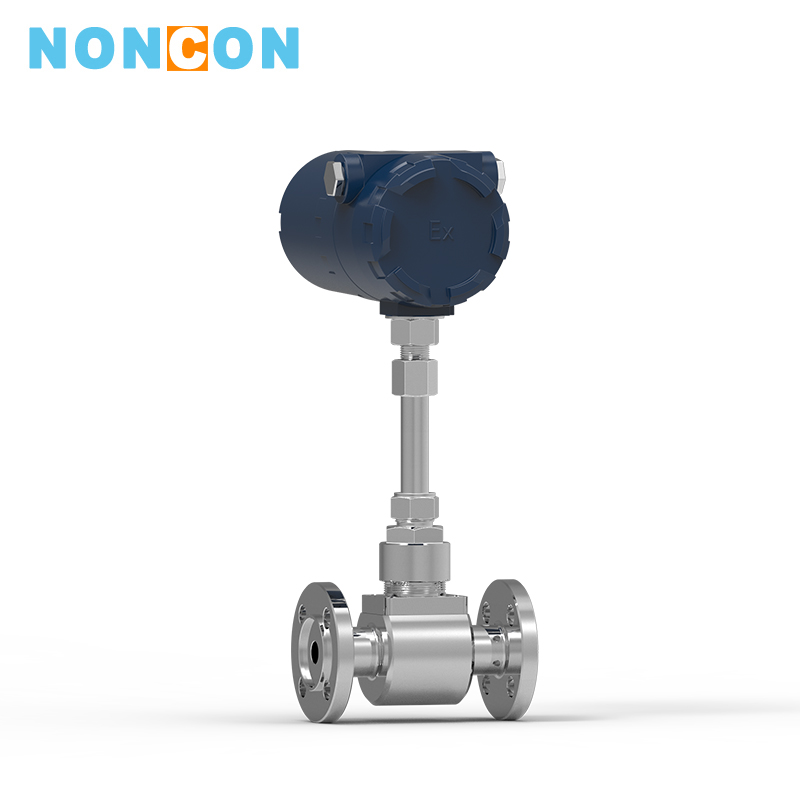

				F2				Flameproof
				F3				Corrosion resistant (sensor is tantalum material)
				F4				High temperature type (150-250℃)
Flowmeter and pipe seal connection				L1				Continuous flow assembly and disassembly device (ball valve) <0.8Mpa
				L2				Continuous flow assembly and disassembly device (ball valve) + high pressure seal assembly <2.0Mpa
				L3				Simple threaded assembly <0.8Mpa
				L4				Threaded component + high pressure seal assembly <2.0Mpa
				W1				Flange type components >2.0Mpa
				W2				Flange type heat dissipation component (high temperature type)
				W3				The sampling pipe is flanged to the pipe under test on site
				W4				The sampling pipe is threaded to the pipe under test on site
Practical pipe diameter							-	Based on the actual inner diameter of the pipe at the user site (for example, the inner diameter of the pipe is 300mm, it is indicated by the number 300)

Ⅲ.Installation Dimension and Requirements

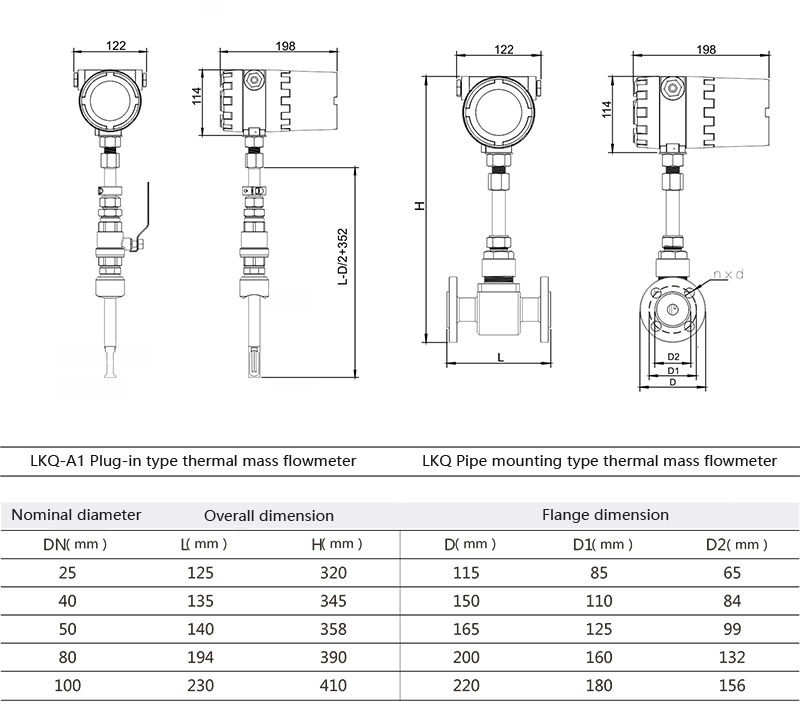

1.Installation dimension

2.Installation requirements

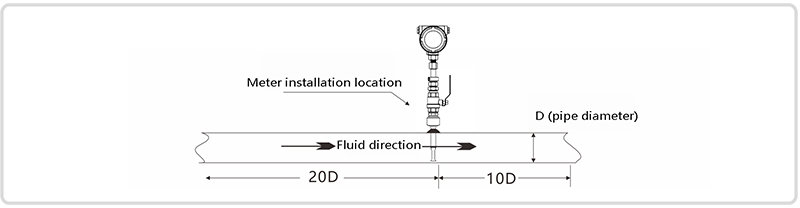

a.The length of the straight pipe section of the pipe to be tested at the installation of the flowmeter shall meet: upstream 20D distance, downstream 10D distance (D is the inner diameter of the pipe). By using our rectifying flowmeter (pipe diameter ≤DN100), the length requirements of the front and rear straight pipe sections can be greatly reduced.
b.The flow regulating valve should be installed as least 10D far from downstream of the flowmeter . If it must be installed at the front end, it should be far away from the measuring point.
