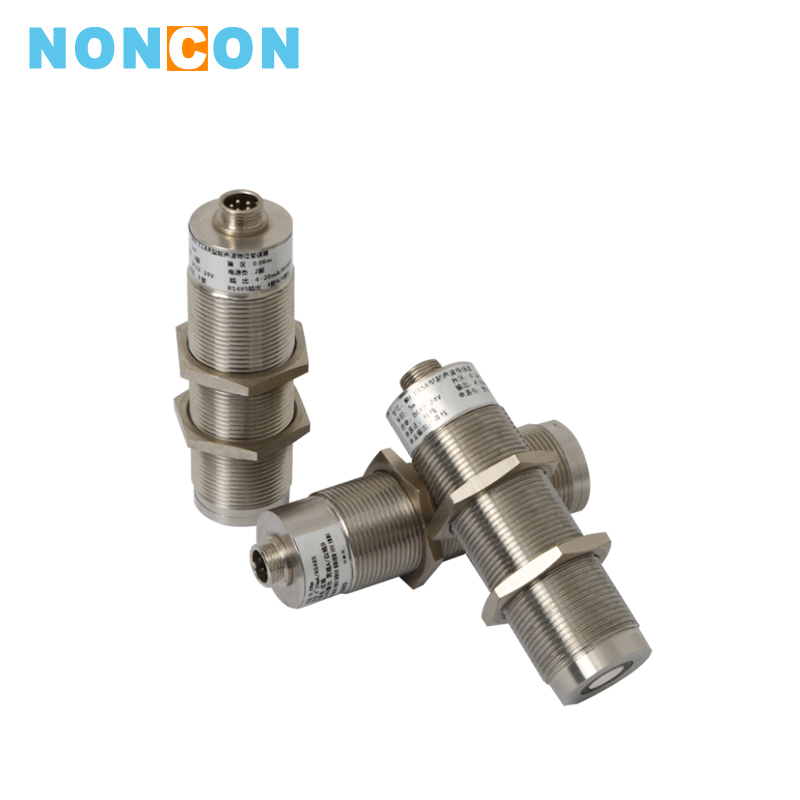

YI2000C High Precision Small Blind Area Ultrasonic Material
application：
medium：
YI2000C high precision small blind area ultrasonic (liquid) level transmitter, is our company is designed for small blind area, high precision, small installation space of the working condition measurement and control, is the first blind area less than 0.06m, accuracy can be up to 1mm of ultrasonic ranging products.Main chip imported industrial microcomputer, digital temperature compensation and super wide voltage input voltage and so on dozens of pieces of relevant application-specific integrated circuit, make the product more stable work more reliable performance, it is featured by strong anti-interference, and can be set up by any PC software on the lower limit for the output node and online, can choose analog, switch quantity output and RS485 interface convenient and related facilities.
Detailed introduction
Ⅰ.Produpt features■Robust and stable sensors for harsh industrial applications;
■Strong anti-interference, can set arbitrary upper and lower limit nodes and online output regulation;
■The transducer has built-in temperature sensor to realize real-time automatic temperature compensation;
■4~20mA current output, optional field bus interface;
■Small blind area can be less than 6cm, the first in China;
■Suitable for small space environment.

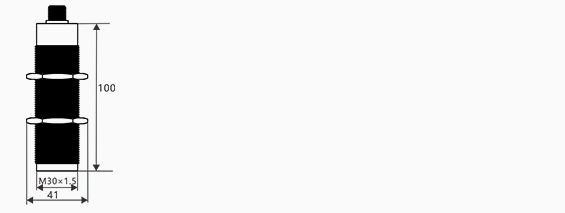

Ⅱ.Dimension drawing
1.YI 2000C high precision small blind area liquid level (object level) transmitter

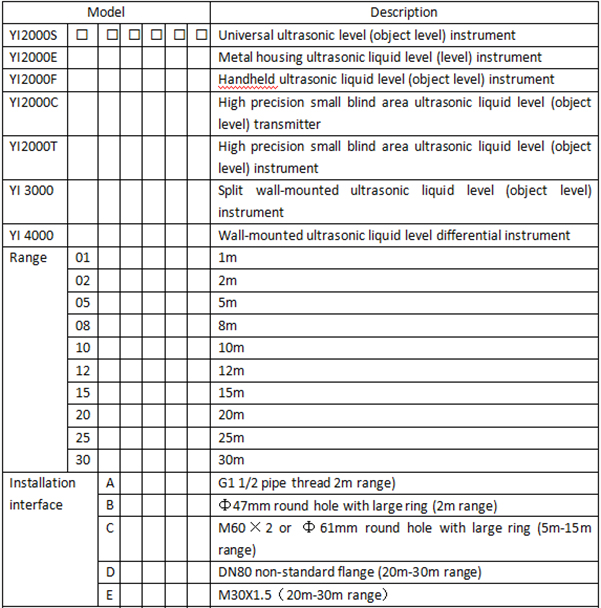

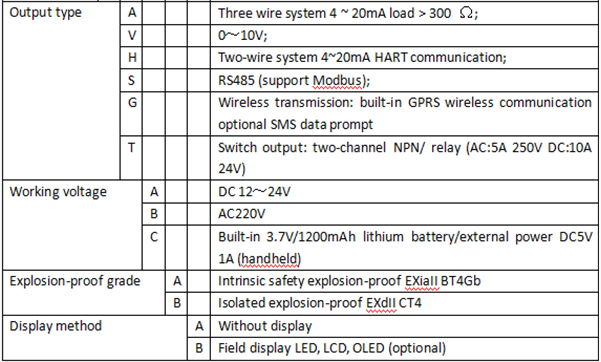

Ⅲ.Product selection
