Detailed introduction

The fixed sensors are divided into external clip type, plug-in type and tube type. The various sensor features are as follows:
 1. Fix the externally clamped sensor
The classification of fixed external clamping sensor is the same as that of carrying external clamping sensor. The main characteristics of the two sensors are as follows:
■Installation without interruption, no pressure loss
■Accuracy ±1%
■Easy installation and maintenance, users can install
■The price is lower and has nothing to do with the measurement aperture
■Suitable for the environment with better working and mining conditions

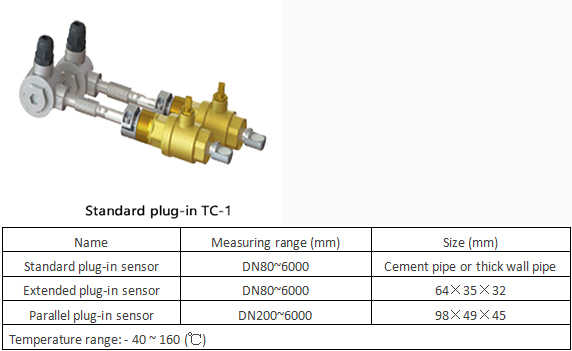

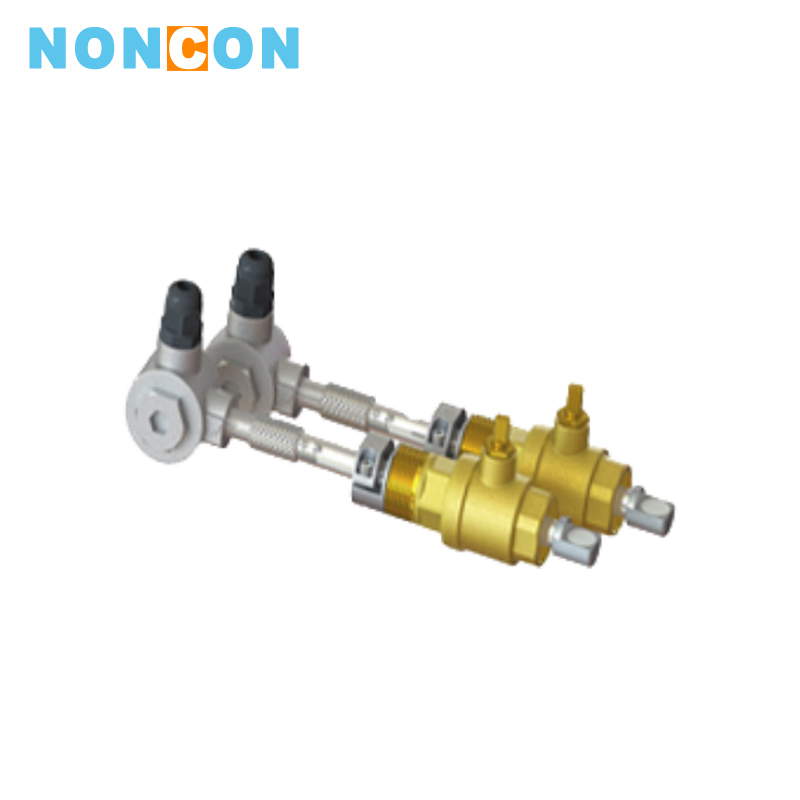

2.plug-in sensor
Plug-in sensor points: standard plug-in sensor, extended plug-in sensor, parallel plug-in sensor.
■Installation without interruption, no pressure loss
■Accuracy ±1%
■After the user needs to be trained, the special hole opener can be installed by itself
■The price is lower and has nothing to do with the measurement aperture
■Receiving signal is good, long-term operation is stable and reliable

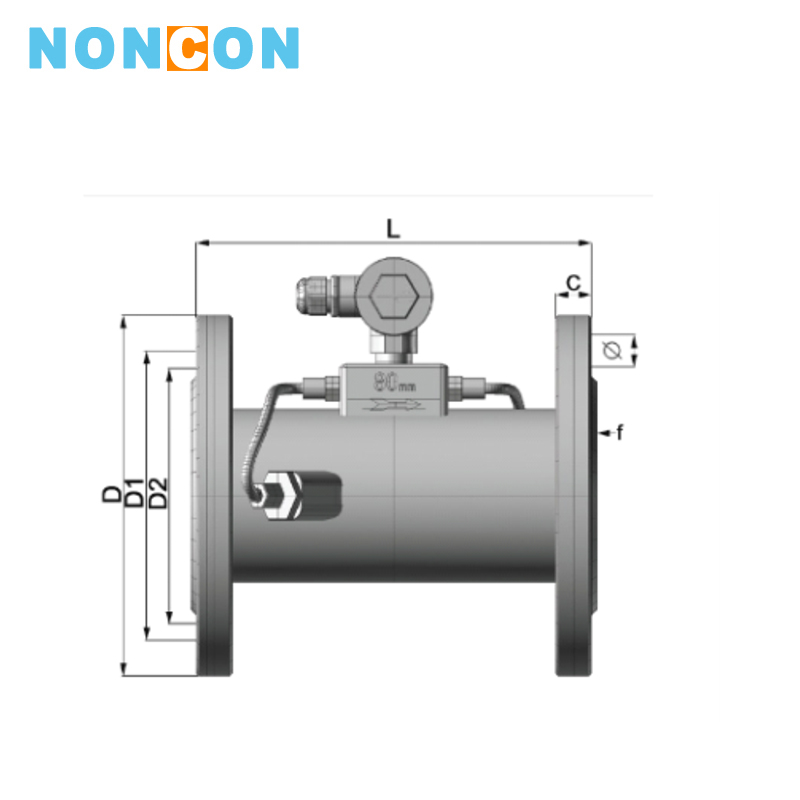

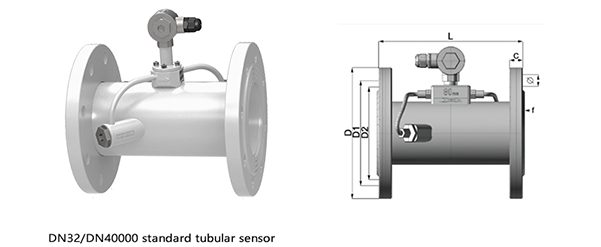

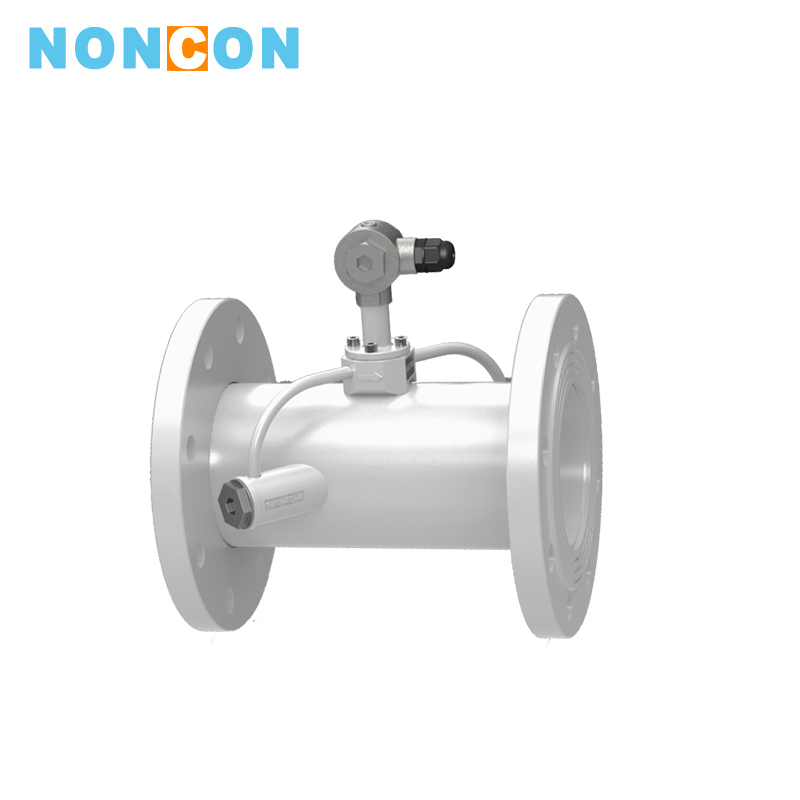

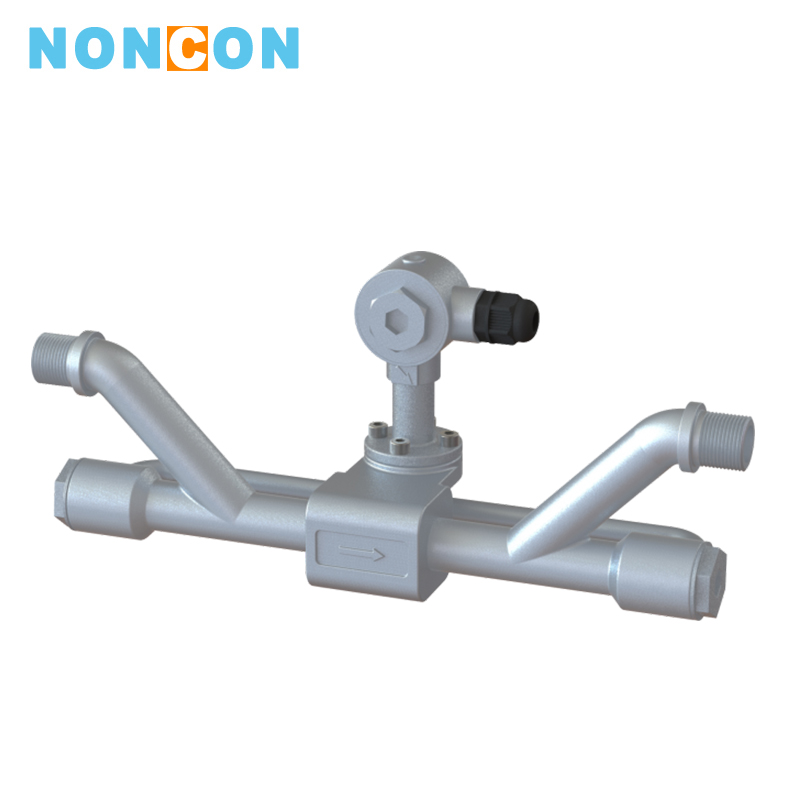

1.2.3 Tubular sensor

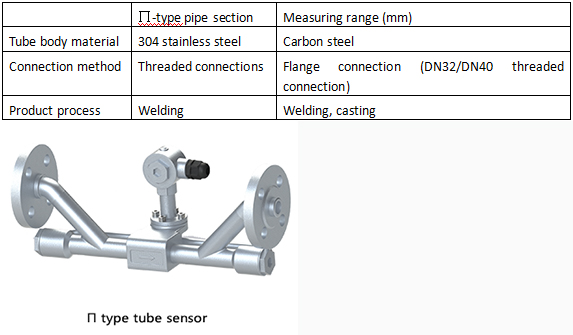

Tubular sensors are divided into pipe-type and standard pipe-type according to calibre.
■Installation needs short pipe, cut-off, no pressure loss
■Accuracy ±0.5% (battery power: ±2%)
■Installation and maintenance need to stop flow, users can install
■The larger the measurement aperture, the higher the price
■Highest accuracy and good reception
■Long-term operation stable and reliable
