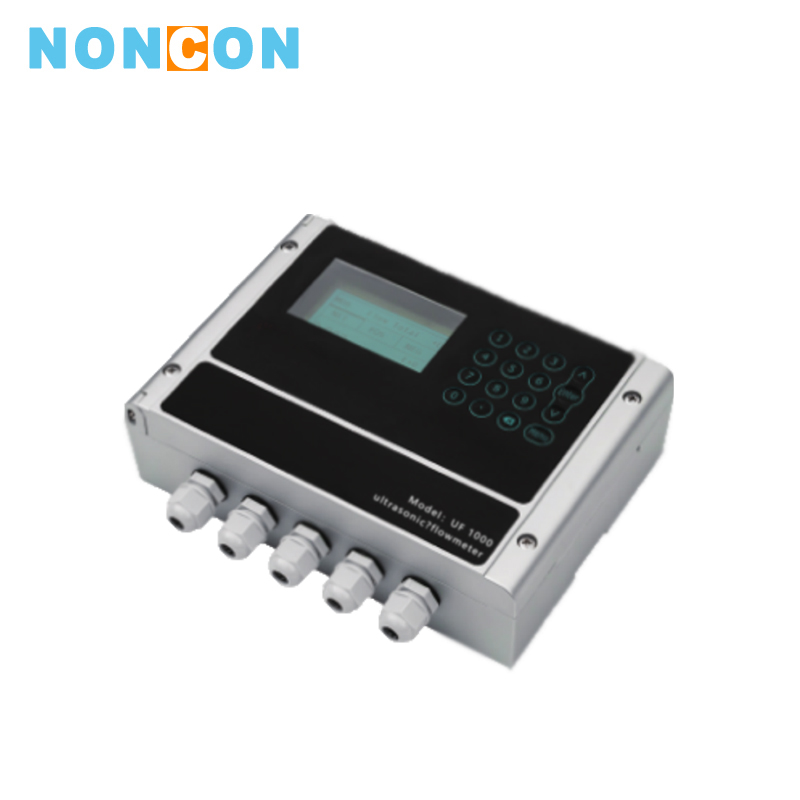

UF1000 Wall - Mounted Ultrasonic Flowmeter
application：
medium：
River river reservoir raw water industrial circulating water food tap water flow measurement etc.
UF 1000 is an economical jet-lag ultrasonic flowmeter specifically designed for water.Compared with other ultrasonic flow child meters on the market it has the characteristics of high reaction rate low power consumption and high certainty. In addition it also continues the self-developed TGA technology.TGA is the time we study the ultrasonic measurement algorithm well reference existing various TDCM algorithm eventually successful research and development to achieve a high speed high degree of measuring time measurement algorithm. The process of the TGA time measurement precision can reach dozens of ps. At the same time with ultrasonic flowmeter installation simple easy to use without broken tube without water supply shutdown the characteristics of the complete installation.
Detailed introduction
Ⅰ.Product features■The UF 1000 can be combined with the RTD model and temperature sensor to become the energy meter of the heat and cold consumption of the metering supply, hot pipe, air conditioning and refrigeration pipe.
■Both plug-in and clip-on sensors are available, and a pair of sensors can be used for the common diameter.
■Ordinary standard plug-in sensor degrees of upper limit of 130 ℃.
Ⅱ.Application industry
Single media liquid flow measurement for the following industries
1. Environmentally-friendly municipal sewage measurement;
2. Measurement of the original production flow of the oil field; measurement of cementing volume; measurement of oily wastewater flow in oil fields; measurement of water injection volume of oil wells;
3. Water company: measuring the flow of tap water in the raw water of river, word and reservoir;
4. Petrochemical industry: Process flow measurement of petrochemical products for industrial circulating water flow measurement;
5. Metallurgy: industrial circulating water flow measurement production process water consumption measurement mineral processing ore flow measurement;
6. Mine: mine drainage flow measurement far r miners flow measurement;
7. Aluminum plant: measuring the water consumption in the production process, measuring and controlling the flow rate of aluminic acid and other process flows;
8. Papermaking: measurement of pulp flow and water consumption in the production process;
9. Pharmaceutical factory: chemical flow measurement; water consumption measurement in the production process;
10. Power plant, thermal power plant: production process water consumption measurement cooling ring water flow measurement generator set diagram cooling water flow measurement (ultra-small pipe diameter);
11. Food: juice flow measurement, milk flow measurement;

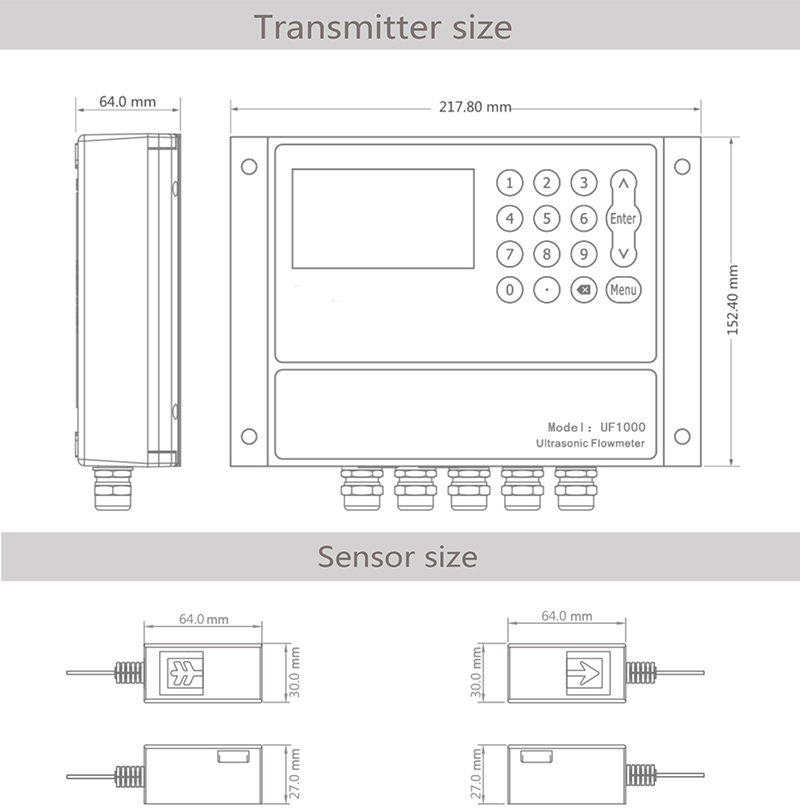

Ⅲ.Product size
Ⅳ.Selection information
| Model | Transmitter |
| UF 500 | wall - mounted ultrasonic flowmeter |
| Range:±0.03m/s~±5m/s | |
| Accuracy:±1% | |
| Repeat accuracy:0.2% | |
| Display: 240*128LCD | |
| Power supply: 10-36VDC@1A maximum | |
| Transmitter shell: IP65, ABS (working temperature - 20 ℃~50 ℃) | |
| Output: OCT pulse output 0-10KHz, relay output 4-20mA | |
| Communications: RS232 / RS485, Modbus protocol | |
| Coding | Output |
| 1 | OCT, relay, RS232/485 , 4-20mA |
| 2 | OCT, relay, RS232/485 , 4-20mA,RTD |

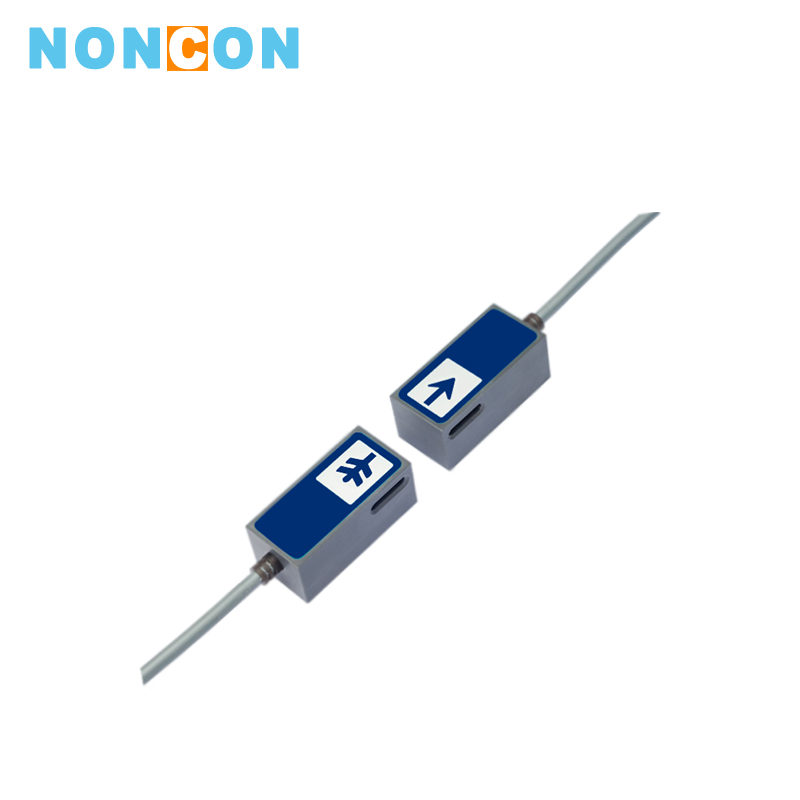

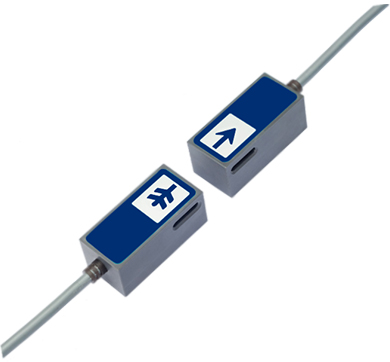

| Coding | Sensor |
| CD01 | Outside the clip-on,IP68.Working temperature: -40℃ ~ + 80℃ |
| W1 | Plug -in,IP68.Working temperature: -40℃ ~ + 130℃) |
| XXX | Cable length |
| 030 | Standard length is 9m |
| XXX | The maximum length can be extended to 274m |
| Coding | Temperature sensor |
| PT 1000 | PT 1000 temperature sensor |
