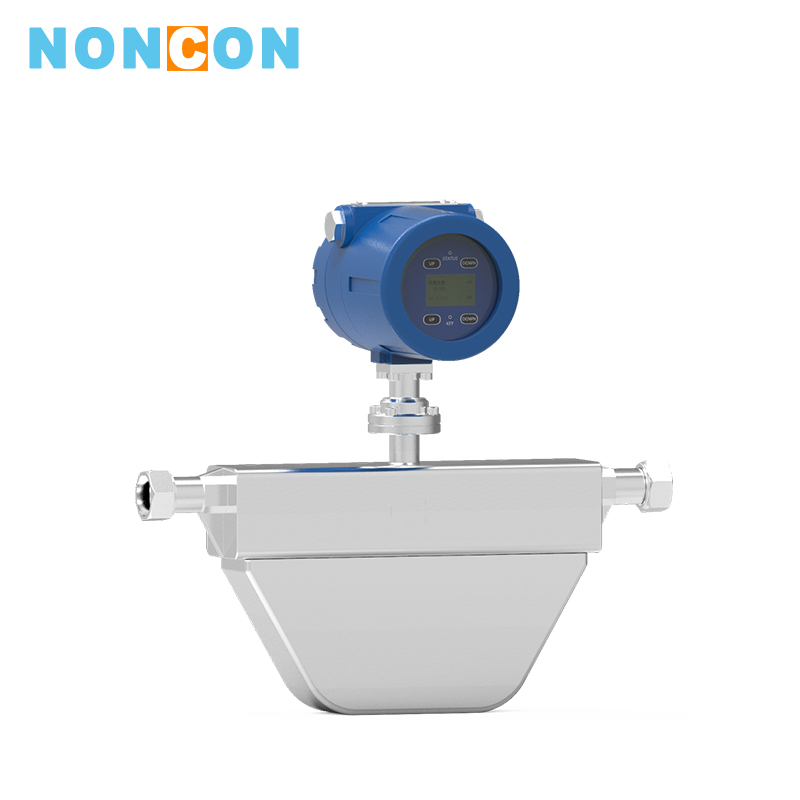

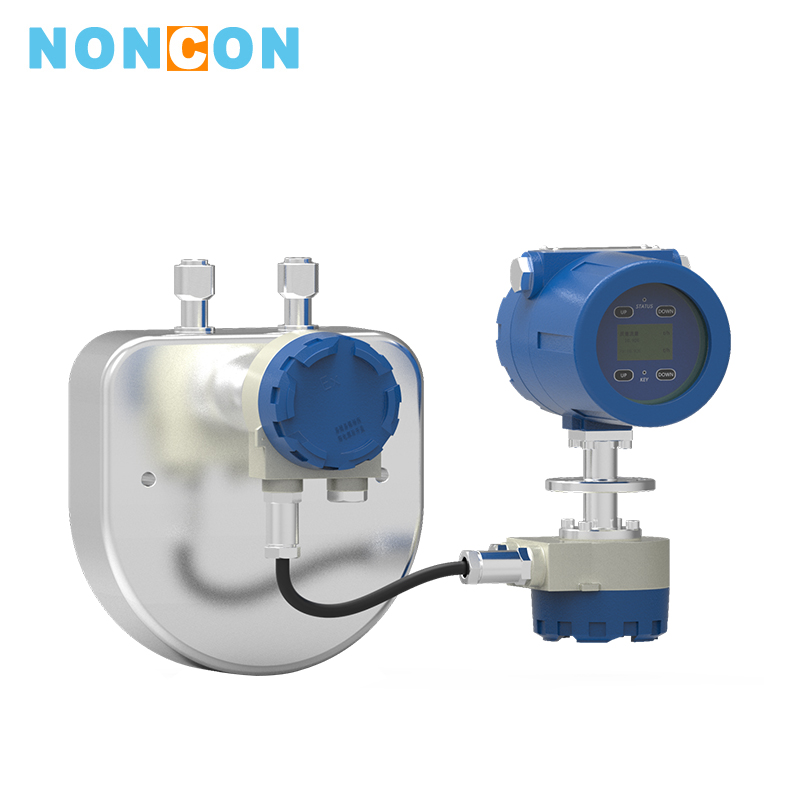

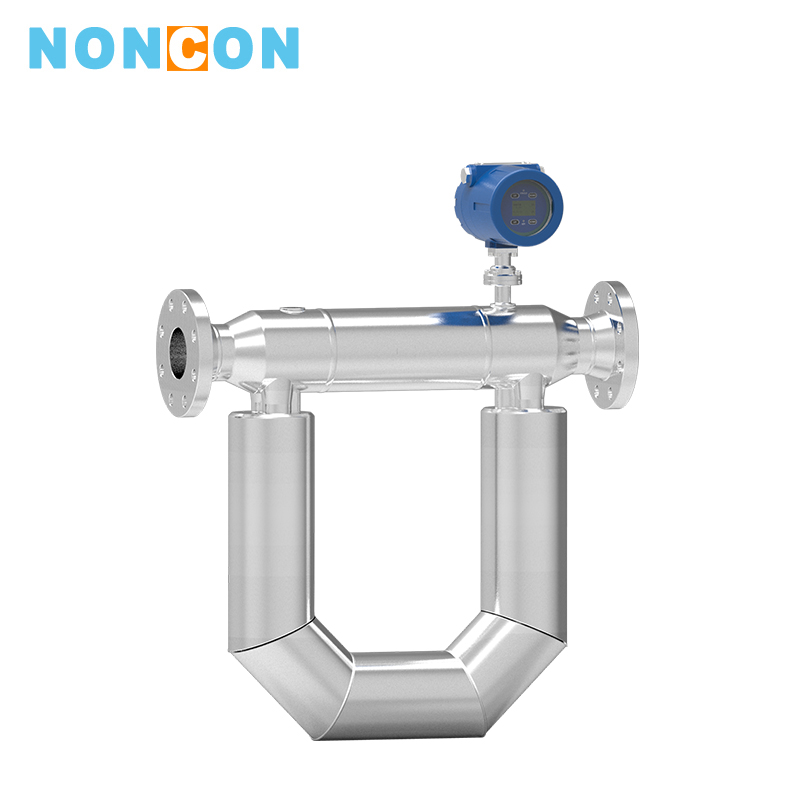

Lk Coriolis Mass Flowmeter
application：
medium：
Petroleum, chemical, food, environmental protection and other industries.
Developed independently by our company patent product type LK mass flowmeter is a kind of advanced high precision mass flow meter, due to its superior performance, make the high accuracy of measurement, the fluid state requirements, low pressure loss and a variety of specifications of the coriolis force (hereinafter referred to as the coriolis force) instrument can be directly obtained by measuring the quality of the liquid or slurry flow, volume flow, density, temperature, without artificial calculation or estimate, even in poor working environment can show excellent performance, its internal no moving parts, does not need complex installation, also does not have stringent requirements for working condition,Each sensor is made of stainless steel, the output of the transmitter can meet your various needs.
Detailed introduction
Ⅰ.Product advantage■High pressure leakage monitoring and protection (type C)
The use of special explosion-proof leakage measurement sensor, real-time monitoring of CNG leakage and early warning;Adopt high pressure stainless steel metal shell to realize double protection of leakage;
■High measurement accuracy
The maximum accuracy is up to 0.1% of the indicated value, and the maximum range ratio is 100:1.
■Time and temperature drift
The transmitter adopts frequency domain digital signal processing technology, high precision, good stability, high precision real-time medium mass flow and density calculation;Solve the problems of time drift and temperature drift;And at the same time with current, pulse, digital output interface, suitable for a variety of systems.
■Strong adaptability
The patented technology of coupling vibration isolation is used to make the product insensitive to on-site vibration interference and highly adaptable.
■Easy to install
Equipped with integrated transmitter, easy to install, no straight pipe section requirements, whether in the upstream or downstream of the sensor, fully compatible with similar foreign products.
Ⅱ.Product categories
1. LKC type mass flow meter
LKC mass flow meter is suitable for measuring almost all liquids without solid particles, mainly used in food, petroleum, chemical industry and other industries.
2. LKD type mass flow meter
LKD mass flowmeter is a special mass flow sensor designed for the measurement of compressed natural gas (CNG). It can be used in any gas feeder, and can also be used as a special sensor for cars or light and heavy vehicles.

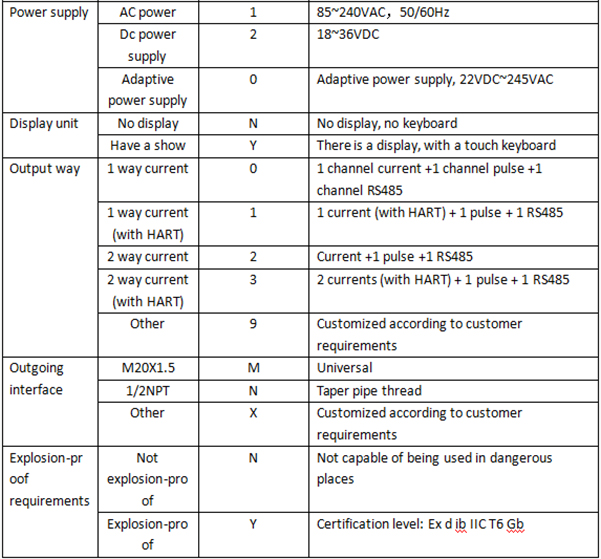

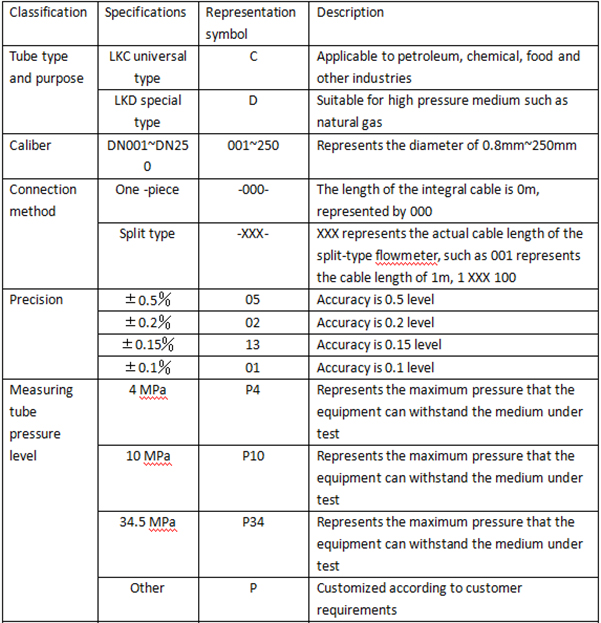

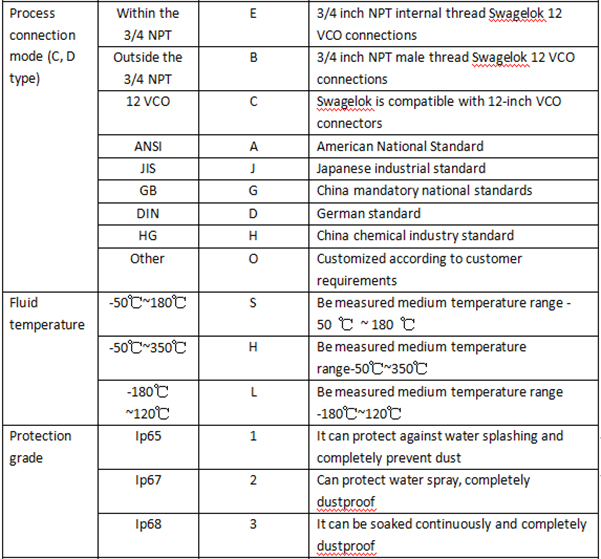

Ⅲ.Selection information
